Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty
Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty
Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

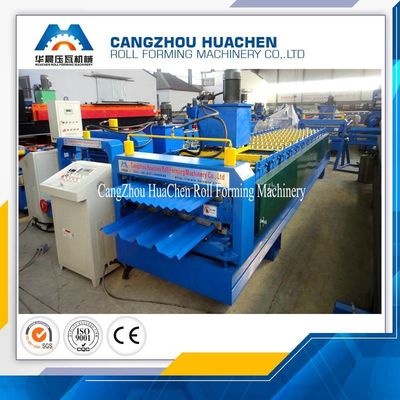

Hình ảnh lớn :  Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO/CE
Model Number: HC17-35
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 12000-17000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty

Sự miêu tả
Model Number:: double layer roll forming machine Warranty: 18 month
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
Điểm nổi bật:

corrugated roll forming machine

,

metal roll forming machine

Double layer cold roll forming machine


Production Flow

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products





Product Description



decoilerManual type/ Hydraulic type
main roll forming machines

Steps: 14 stations
Roller Material: 45# steel Voltage: 380V/50Hz.
Line speed: 2- 4m/min

computer control cabinetPLC TOUCH OR TEST
hydraulic System 5.5kw
cutting mechanism mould cutting
counterOne counter gauges length, pulses, and decides length
of output table It used to load the forming plate




ModelCover width(mm)Coil width(mm)Wave height(mm)Wave height(mm)
FX840840100035125
FX860860100030280
FX900900100021215
FX910910100015225
aFX10501050120025210
Design Double

One machine can make two type machine make in Double.
Also can design as customers requsdt.

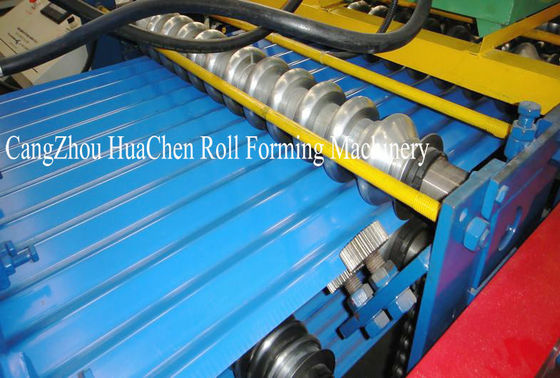

Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty 0Blue Double Layer Roll Forming Machine With PLC Control System , 18 Month Warranty 1

After-Sales Service

1. we can produce the special machine,send your drawing to us,we can design for you.


2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!

The real data, the most professinal foreign trade team, your best trustable partner.
