Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment

Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment
Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment
Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment

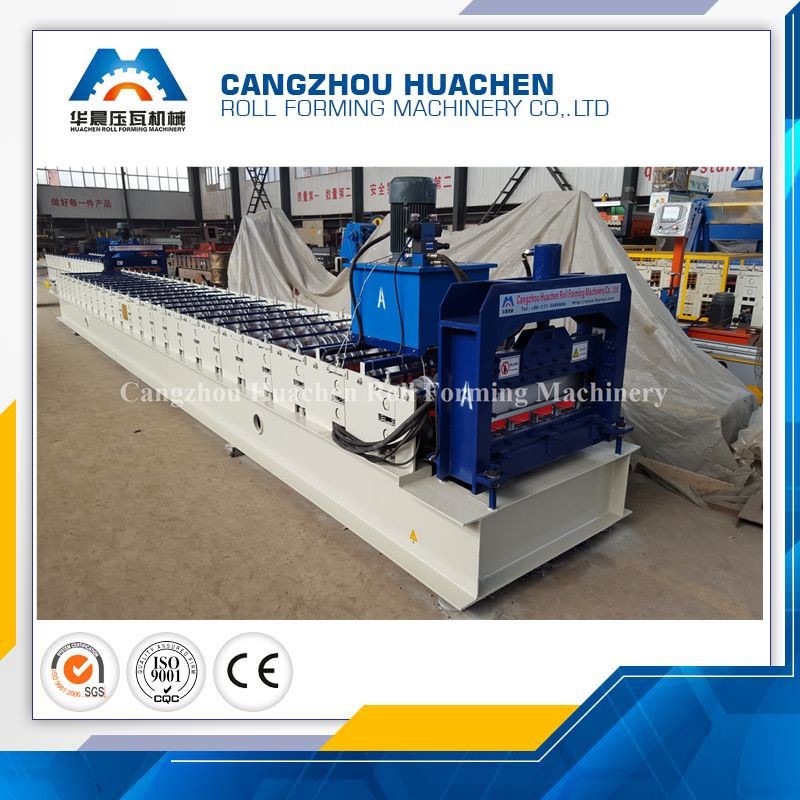

Hình ảnh lớn :  Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: HC
Chứng nhận: ISO CE
Model Number: HC38
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: USD8000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month

Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment

Sự miêu tả
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine cutting blade: Cr12
Điểm nổi bật:

roof tile roll forming machine

,

cold roll forming machine

Metal roofing sheet cold roll forming machine specification:



No. Name specification
1. Main part of machine Decoil, rolling system, cutting system, output tabel
2. Control system PLC automatic control
3. Main motor power 3kw or as customer requirement
4. Hydraulic motor power 4kw or as customer requirement
5. Hydraulic pressure 10-12Mpa
6. Voltage 380V/50HZ (or as customer requirement)
7. Main Frame 300H beams
8. raw material galvanized/galvalume/color steel coil, and aluminum coil
9. Feeding thickness 0.2mm to 1.4mm
10. Feeding width 50mm to 1500mm
11. Produce speed 0m/min to 12m/min
12. roller material 45# steel
13. Cutting material Cr12 quenched
14. Machine length 4.8meter to 13meter
15. Total weight 4.5Tons to 8Tons
16. work flow decoiler - feeding and guilding - roll forming - cut as length - out put sheet
17. warrant time 14months
18. Package Standard export package
21. Delivery time from 10-15work days (it is be decided by the order quantity)



Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided

Operating system language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Computer used to control length & quantity
Machine will automatically cut to length and stop when required quantity is achieved
Length inaccuracy can be amended easily.
Control panel
Button-type switch and touch screen
Unit of length
millimeter (switched on the control panel)
PLC brand
Panasonic
Frequency converter brand
Yaskawa
Touch screen
Taiwan Weinview
Color
gray
Quantity
1



Metal roof cold roll forming machine Components of line:

No. Name Unit Qty
1 Decoiler set 1
2 Main machine for roll forming set 1
3 Control system set 1
4 Hydraulic system set 1
6 Post cut set 1
7 Output table set 1



















Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment 0Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment 1Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment 2Galvanized Roofing Sheet Roll Forming Machine PLC Cold Roll Forming Equipment 3
