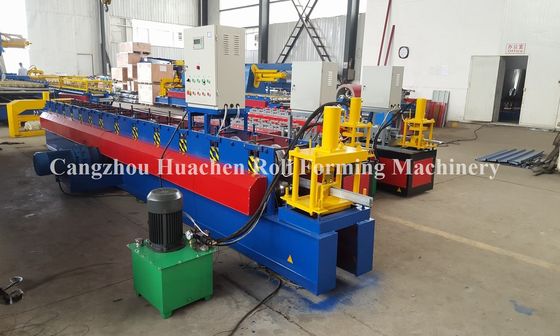

2.Machine parameters
1. Rack: Using 300H steel welding
2. Forming Machine-driven feeding frame forms: lateral slide-style
3. Forming Machine Type: wall-type chain drive. Wall thickness of 14 mm.
4. Shaft Diameter: 45 mm
5. Chains: 1 inch single-row
6. Forming Motor Power: 4KW
7. Forming Machine speed: 8-10m/min
8. Forming Machine Road Number: 12 stations
9. Roll Material: high quality 45 # steel Duan playing pieces
10. Hydraulic station motor: 4kw
11. Rolling thickness :0.8-1 .0 MM
12. Materials Expand Width: 100mm
13. The computer use of PLC, Taiwan and Taiwan reached
14. The machine weighs about 2.5 tons, length of 4 meters wide and 0.88 meters, 0.88 meters high.
. The forming rollers are the key of roll forming machine. We use CAD to design and manufacture the rollers. After CNC lathe, the forming rollers will be harden by vacuum heat treatment and finished the profiles again. These processes make the more accurate forming rollers, avoid the deformation during heat treatment and ensure the rollers preciseness and wear-resisting ability.
3.Components of the processing line
Manual Decoiler------------------------------1 set(free)
Roll Forming Main Station----------------1 set(customer designed)
Oil Pump----------------------------------------1 set(customer designed)
Control Box-------------------------------------1 set(Panasonic PLC or customer designed)
Simple Receiving Table--------------------2 sets(free)
4.Working Process
5.Pictures Show
