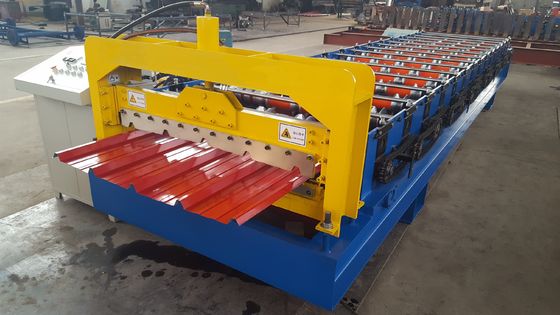

High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers

High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers
High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers
High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers

Hình ảnh lớn :  High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: HC
Chứng nhận: ISO CE
Model Number: HC25
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: USD8000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month

High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers

Sự miêu tả
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine cutting blade: Cr12
Điểm nổi bật:

roof tile roll forming machine

,

cold roll forming machine

Metal roofing sheet cold roll forming machine specification:



No. Name specification
1. Main part of machine Decoil, rolling system, cutting system, output tabel
2. Control system PLC automatic control
3. Main motor power 3kw or as customer requirement
4. Hydraulic motor power 4kw or as customer requirement
5. Hydraulic pressure 10-12Mpa
6. Voltage 380V/50HZ (or as customer requirement)
7. Main Frame 300H beams
8. raw material galvanized/galvalume/color steel coil, and aluminum coil
9. Feeding thickness 0.2mm to 1.4mm
10. Feeding width 50mm to 1500mm
11. Produce speed 0m/min to 12m/min
12. roller material 45# steel
13. Cutting material Cr12 quenched
14. Machine length 4.8meter to 13meter
15. Total weight 4.5Tons to 8Tons
16. work flow decoiler - feeding and guilding - roll forming - cut as length - out put sheet
17. warrant time 14months
18. Package Standard export package
21. Delivery time from 10-15work days (it is be decided by the order quantity)



Metal roof cold roll forming machine Components of line:

No. Name Unit Qty
1 Decoiler set 1
2 Main machine for roll forming set 1
3 Control system set 1
4 Hydraulic system set 1
6 Post cut set 1
7 Output table set 1

















High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers 0High Capacity 20 M / Min Corrugated Roof Sheet Roll Forming Machine 45# Steel Rollers 1
