Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting
Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

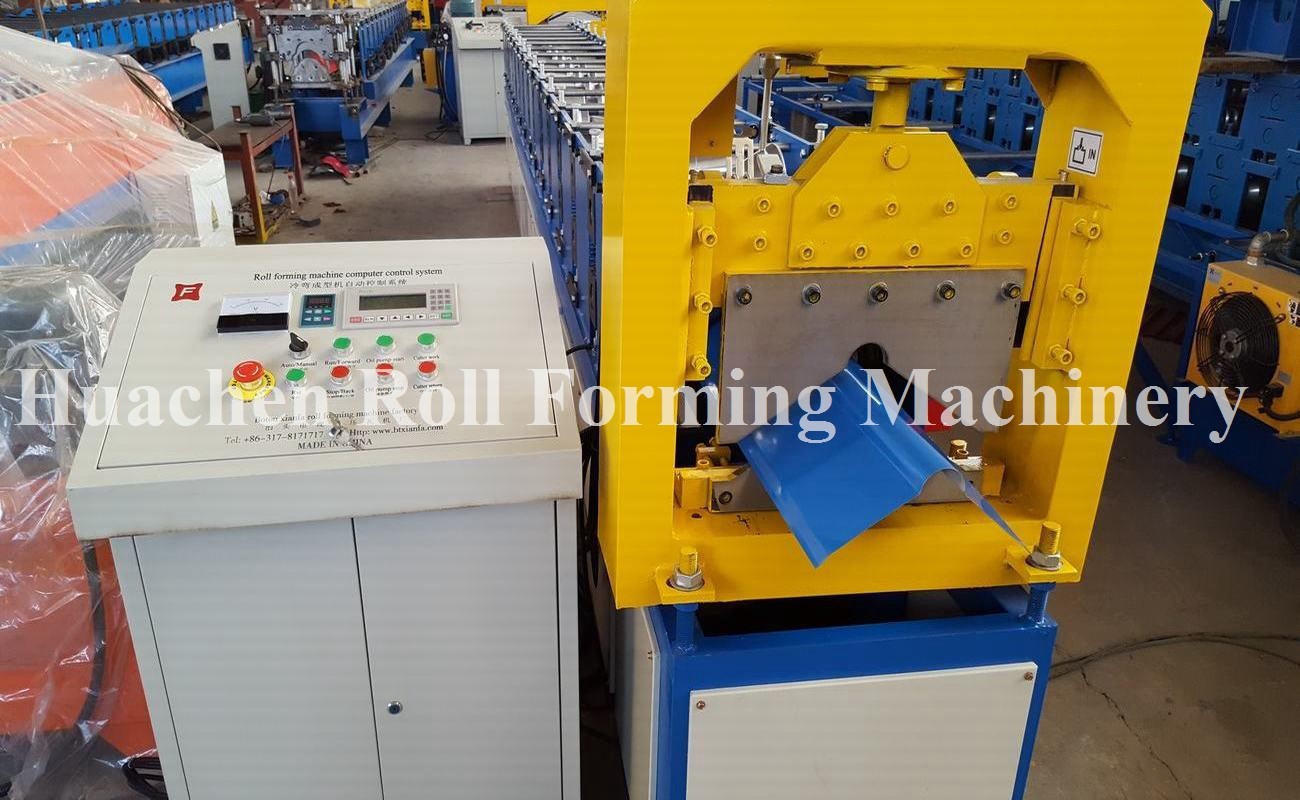

Hình ảnh lớn :  Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC280
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 13000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Sự miêu tả
Điểm nổi bật:

roll form equipment

,

metal forming machines





Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting



Description



The ridge caps made by our Steel Roof Ridge Cap Cold Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc .



Specifications


  • Material thickness: 0.3-0.6mm for Roof Ridge Cap
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 7.5 Kw
  • Forming Station: approx 15 ( depend on profile drawing )
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton
Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting 0Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting 1

Main Components


  • Decoiler ---------------------------------------------=- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • Main roll forming machine --------------------------- 1 Unit
  • Hydraulic pressing device --------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- ---1 Unit


Working Flow


Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
