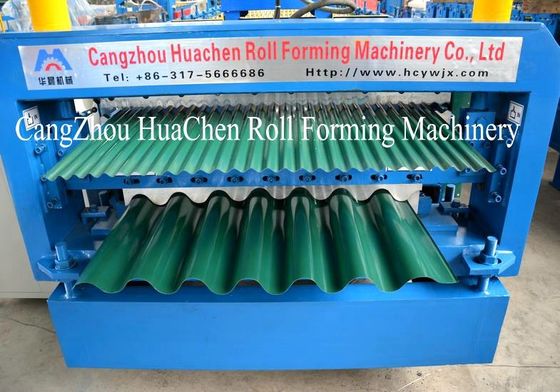

Horizontal Speed 15-18m / min Cold Roll Former , Corrugated roofing sheet making machine
Application:
Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.
The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
Technical Parameters:
1) Main motor power: 5.5kw
2) Drive: Chain
3) Main shaft dia: ￠76mm material: 45# forge steel and quenched
4) Roller material: 45# forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
5) Roll station: 16 groups for upper layer and 20 groups for lower layer
6) Raw material: 0.3-0.8mm
7) Width of raw material: 1250mm
8) Valid width after fromed: 1150mm&1000mm9) Working speed: 10m--15m/min(Exclude cutting time)
10) Length Tolerance: ±2mm
11) Weight of machine: about 8ton
12) Size of machine: About 10500×1800×1900mm L x W x H
13) Color of machine: depend on customer14) Coder: Omron
15) Control: PLC Panasonic, made in Japan. 380V 50HZ
16) Computer operating panel: touching screen
17) Cutting: Hydraulic cutting18) Auto cutting when reach the set length.
19) Hydraulic power: 3KW
20) Blade material: Cr12,quenched 58°-62°
21) Working pressure:16mpa
22) Cutting tolerance: +/- 1.5mm
Working flow:
Uncoiler—Feeding—roll forming--- hydraulic cut to length—output table
Character of main structure
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
Advantage:
available for two profiles roof panel shared one frame, save the cost.
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles
