General Description

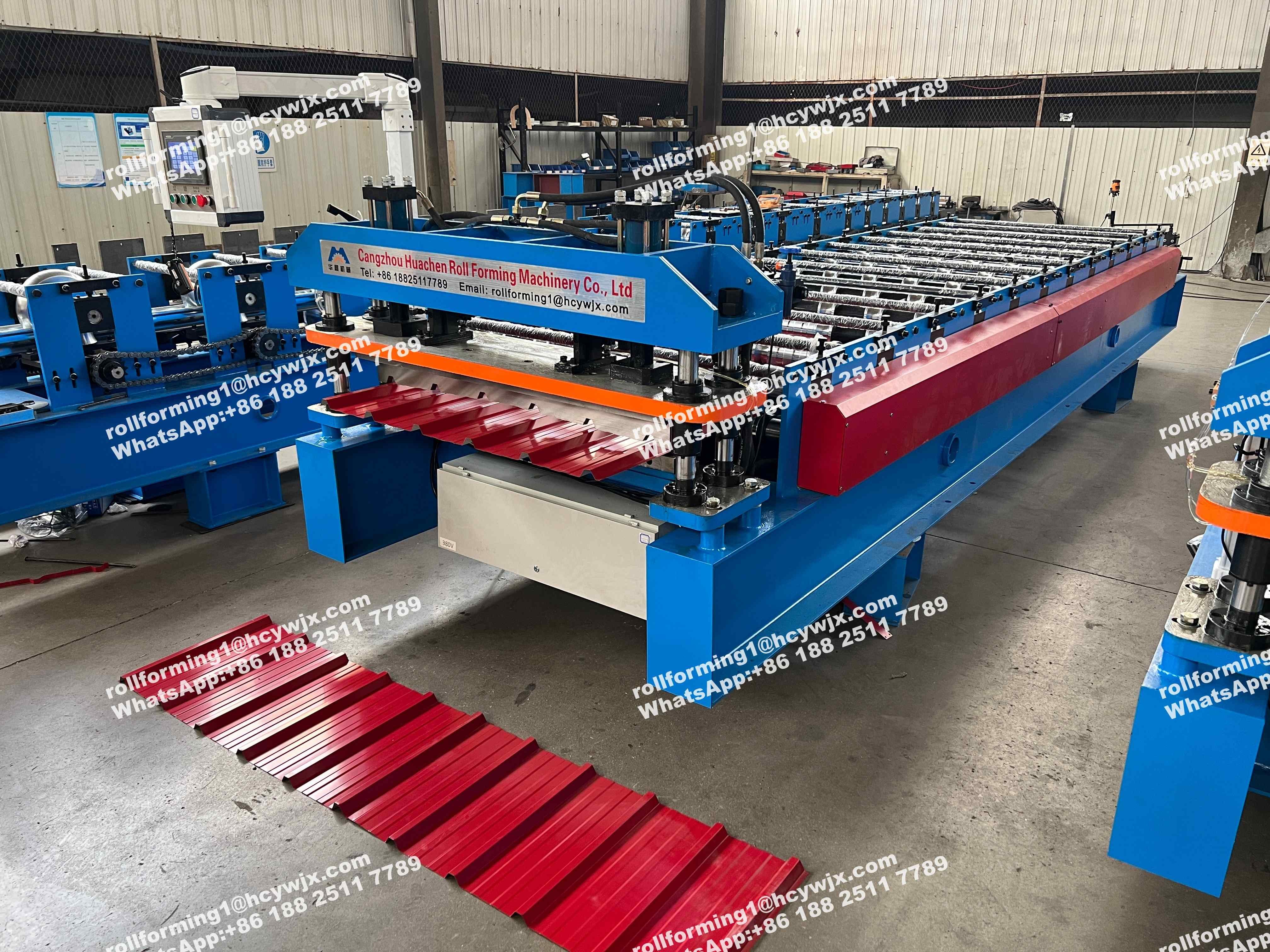

Roofing sheet roll forming machine is also named as roofing sheet making machine or roof panel machine. Roofing sheet roll forming machine is consists of uncoiller, guiding device, roll forming unit, stop-to-cut device, run-out table, hydraulic system and electrical controller and is extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, hotels, villas, residences and different kinds of greenhouses.
Our roof panel machine is designed by professional team with rich experience in machinery industry. We adopt the most advanced technology and high-quality materials to manufacture the best machine. With high efficiency, high flexibility, good performance and low production cost, it is a good choice for manufacturing cold rolled products widely used in the construction. The roofing machine can be customized according to your special needs. We promise to offer products of high quality but with reasonable price.
Technical Specifications for Roofing Sheet Roll Forming Machine
| Name | Model/Name | Quantity | Technical Description |
| 1.Decoiler | 5T automatic decoiler | 1set | Cantilever-type, hydraulic expanding, electrical motor releases the sheet. |

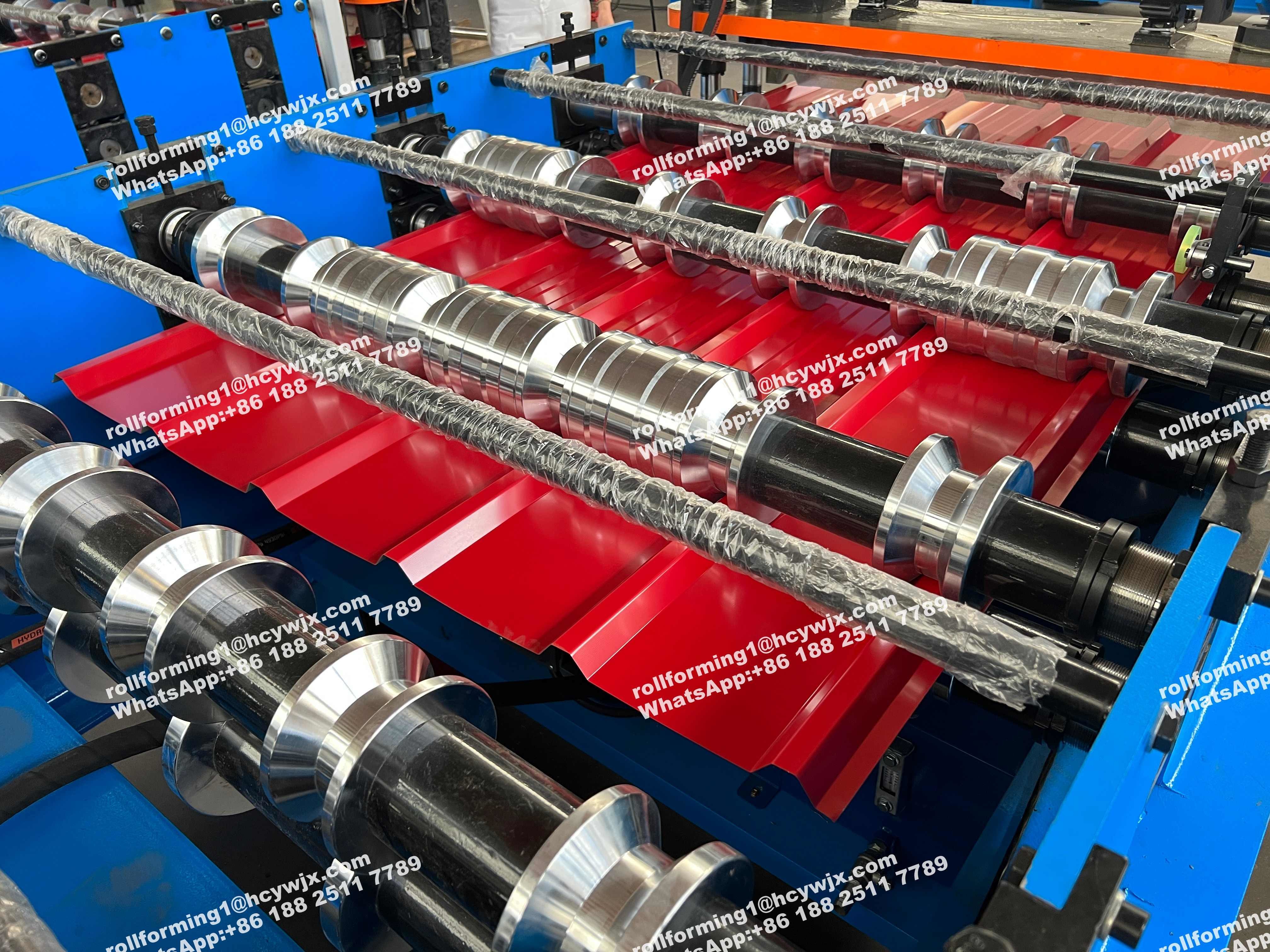

| 2. Main forming system | Pre-cutting device | 1set | 1.Roller material: No.45 steel, surface painted with hard chrome. 2. Roller shaft material: No.45 steel with thermal refining. 3. Roller supporting type: column. 4. Electrical motor driving, back/forward rollers driven by chain, part of upper/lower rollers driven by gear. 5. Cutting blade material Cr12 quenched treatment. |
| Feed guiding device | 1set | ||
| Lubrication device | 1set | ||
| Filming device | 1set | ||
| Roll forming system | 1set | ||
| Complete mobile safety cover | 1set | ||
| Cutting system | 1set | ||
| 3. Output system | Stacking system | 1set | Optional |
| 4. Hydraulic system | 1set | Decoiler adopts separated hydraulic station. | |
| 5. Electric control system | 1set | 1.PLC Control, encoder automatic cut to length PLC 2.Operation: Touch screen+ button |
|
