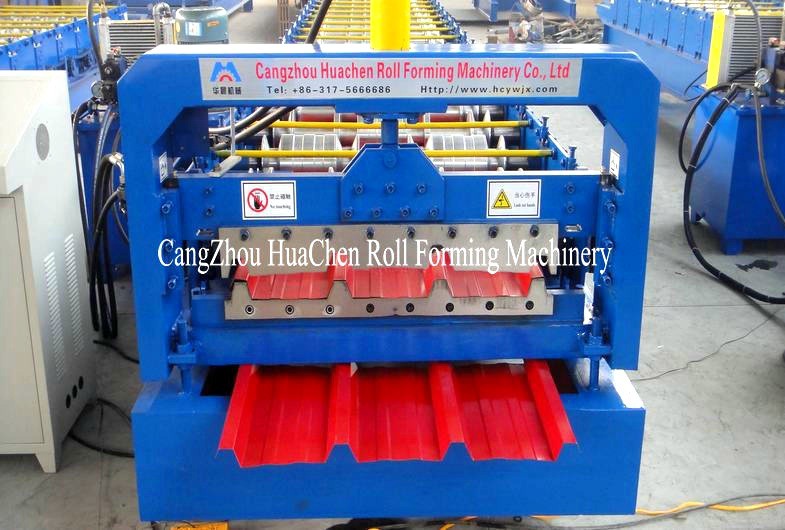

High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting

High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting
High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting
High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting

Hình ảnh lớn :  High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting

Thông tin chi tiết sản phẩm:
Nguồn gốc: China
Hàng hiệu: HC
Chứng nhận: ISO CE
Số mô hình: HC38
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: USD8000-15000
chi tiết đóng gói: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Thời gian giao hàng: 30 work days
Điều khoản thanh toán: D/A, Western Union, L/C, T/T
Khả năng cung cấp: 20 sets per month

High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting

Sự miêu tả
Material: PPGi GI capacity: 4m/min
machine weight: 4.5T rollers: 45# steel
Type: Steel Roofing Sheet Roll Forming Machine
Điểm nổi bật:

roof tile roll forming machine

,

cold roll forming machine


Steel Roofing Sheet Roll Forming Machine Application

Our Steel Roofing Sheet Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Steel Roofing Sheet Roll Forming Machine

Main Roll Forming Machine
Roller station
16 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
20m/min
PLC system
EURA or customized
Weight
4..5T

 High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 0

Steel Roofing Sheet Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 1High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 2High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 3

Steel Roofing Sheet Roll Forming Machine Parts

Detailed Images

High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 4

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment



Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 5
High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 6

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 7 High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 8

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 9

Size: 7800 (L) * 1850 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 10 High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 11 High Speed Steel Roofing Sheet Roll Forming Machine with Flying Cutting 12
