Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder

Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder
Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder
Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder

Hình ảnh lớn :  Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC23/16
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder

Sự miêu tả
Điểm nổi bật:

metal roll forming machine

,

corrugated roll forming machine

Roof Wall Double Sheet Roll Forming Machine​


 Color Steel Sheet Roll Forming Machine

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1200mm
3. Rollers: 10/12 rows
4. Dimensions: 7.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine


1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

upper level :10 rows
Down level :12 rows

4

Dimensions

7200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

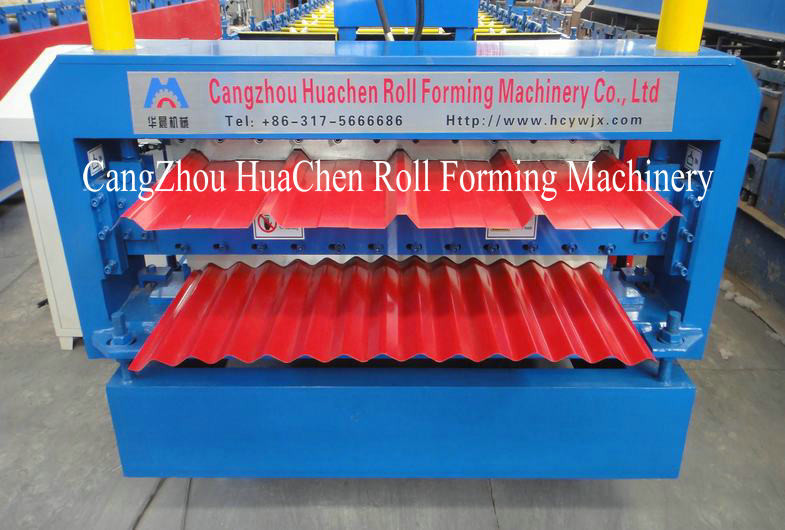

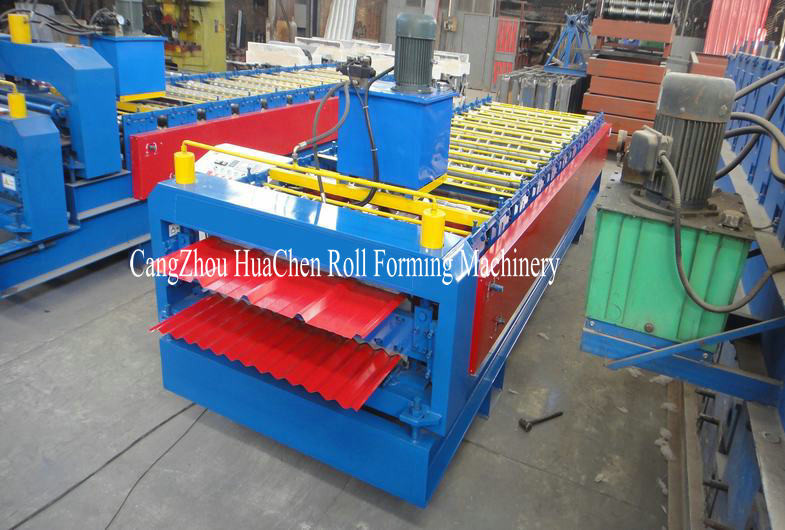

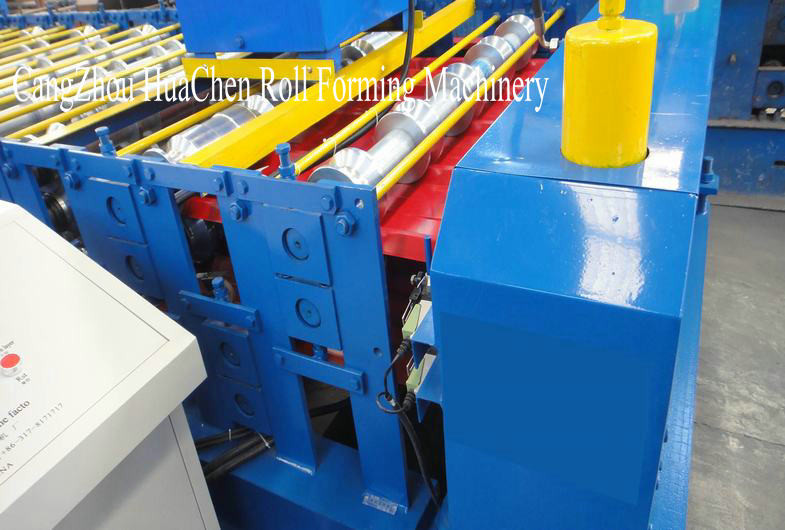

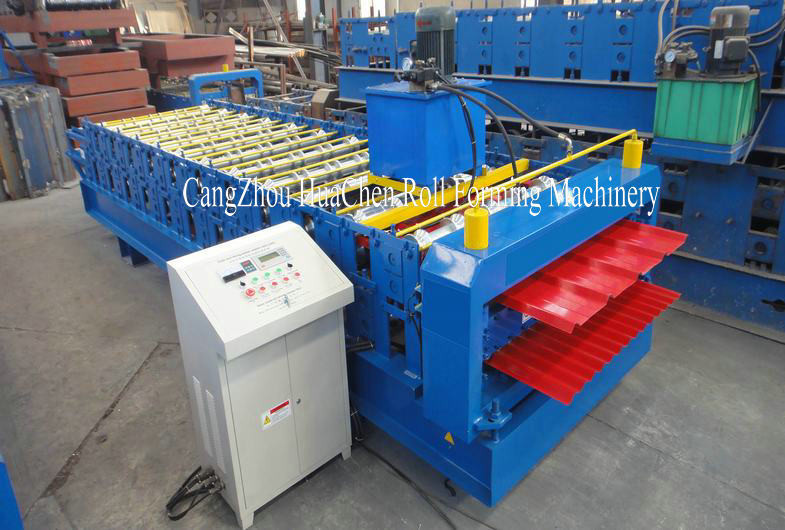

 Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder 0Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder 1Roof Wall Double Sheet Roll Forming Machine Panasonic Omron Encoder 2

Application

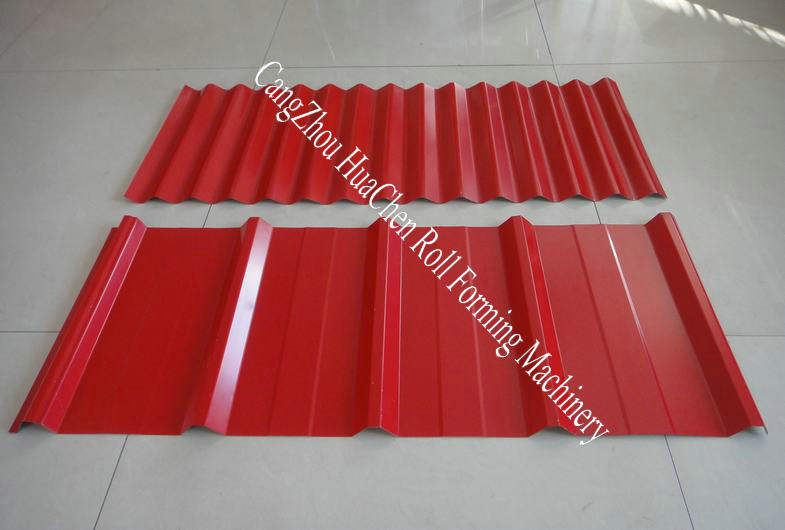

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site


Competitive Advantage

1. Pretty appearance
2. Various special model
3. mature foreign trade team
4. professional designing team
5. Lifetime maintenance
