Thông tin chi tiết sản phẩm:
|
| Type: | Corrugated Sheet Making Machine | Suitable market: | Asia |
|---|---|---|---|
| Usage: | Roof and wall | Power: | 4+4KW |
| Voltage: | 380V or customized | Worker: | 1 only |
| Forming speed: | 10-20m/min | Life time: | 20 years above |
| Warranty: | Whole life | ||
| Điểm nổi bật: | roof tile roll forming machine,cold roll forming machine |
||

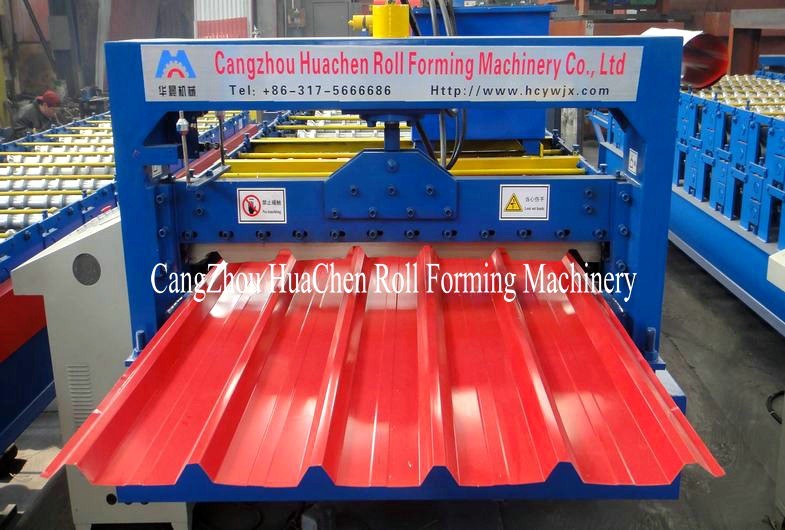

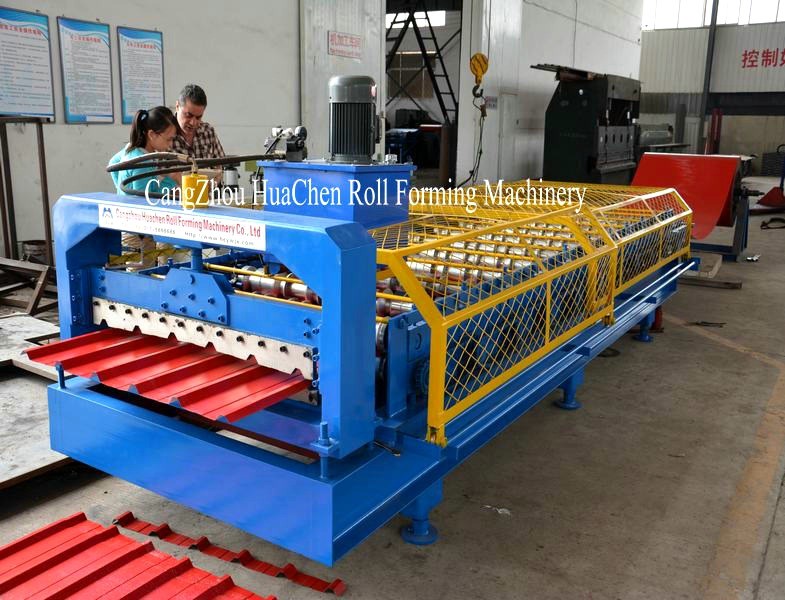

Corrugated Sheet Making Machine
We are one of the leading organization occupied in providing Metal Roofing Sheet Roll Forming Machine, which are producing by using high grade material.we designed a lots kinds of Metal Roofing Sheet Roll Forming Machine. due to the high graded superiority and our client fulfillment,The product by Metal Roofing Sheet Roll Forming Machine has many benefit such as beautiful and colorful outside, light weigh, long life durability. It was widely used in every corn world wide. we can develop special Metal Roofing Sheet Roll Forming Machine as per customer requirement.
1. Suitable to process: Color steel plate
2. Width of the plate: 1200mm

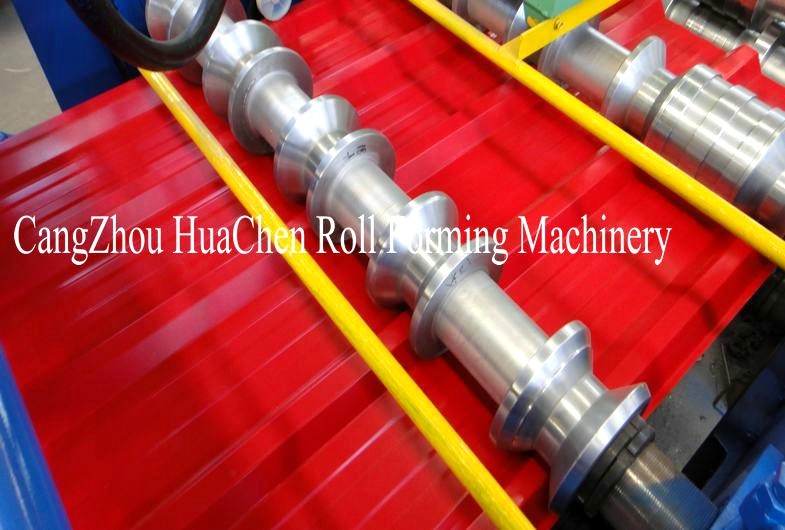

3. Rollers: 11 rows
4. Dimensions: 5.8*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Please note: All the parameters can be designed as customer's requirements.
|
No. |
Main parameter of Corrugated Sheet Making Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1200mm |
|
3 |
Rollers |
11 rows |
|
4 |
Dimensions |
5800*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2. Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3. Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
