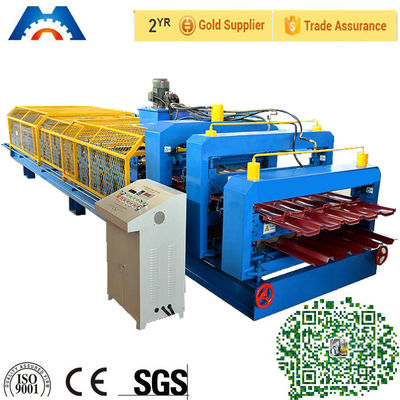

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels
Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Hình ảnh lớn :  Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO/CE
Số mô hình: HC20-35
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 15000-39000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Sự miêu tả
color: blue type: automatic
control system: PLC control cutting method: hydraulic cuting
per month: 30 sets
Điểm nổi bật:

metal roll forming machine

,

sheet metal roll forming machines

Dual Level Roof Roll Forming Machine For Roof Wall Panels


 Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 0Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 1Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 2


Quick Detail:


1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 10/17 rows
4. Dimensions: 9.7*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Description:


 Main parameter

No.

 Main parameter of Double Layer Roof Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :12 rows
Down level :12 rows

4

Dimensions

9700*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control



Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

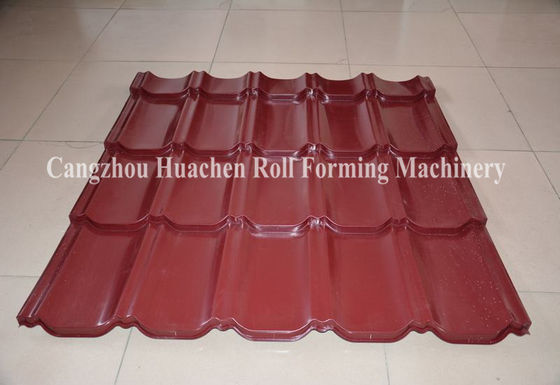

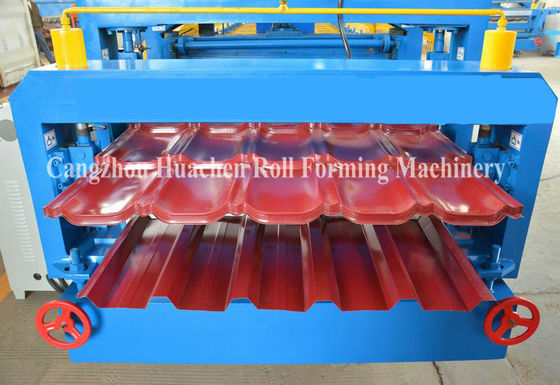

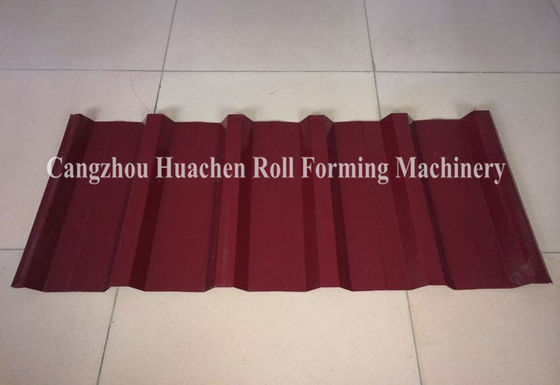

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

Competitive Advantage
 1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 3
