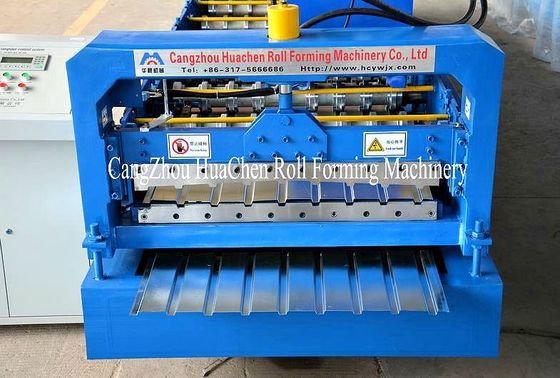

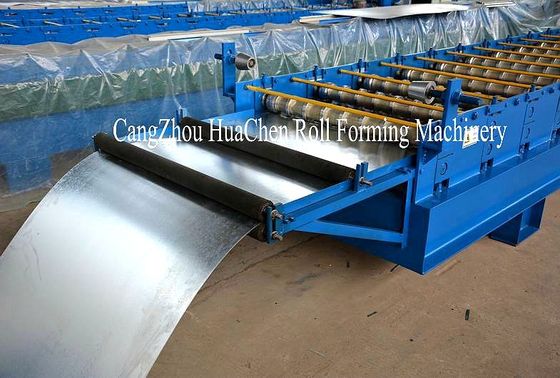

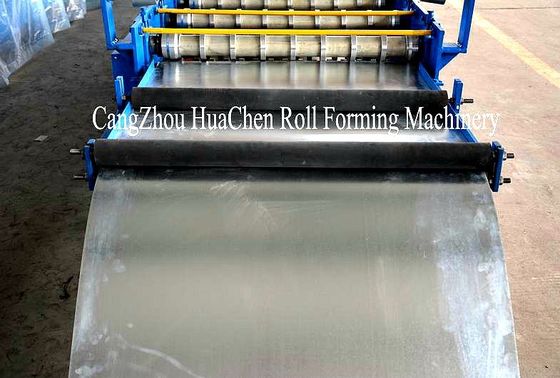

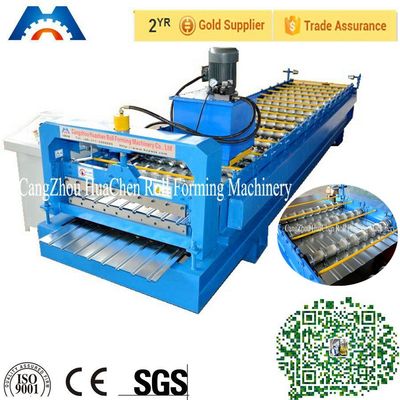

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting
5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting

Hình ảnh lớn :  5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC12
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 8000-29000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting

Sự miêu tả
Capacity: 15m/min thickness: 1mm
Warranty: 12 month type: Wall Panel Roll Forming Machine
Điểm nổi bật:

sheet metal rolling equipment

,

roof sheet making machine



5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting



Being counted amongst the most prominent entities of the market, we are engaged in offering a best quality range of Metal Wall Panel Roll Forming Machine which finds application in production of false ceiling section profiles, cable trays and DIN rails. The offered roll forming roofing product is valued for easy usage, high strength, corrosion & thermal resistance and easy installation. This Metal Wall Panel Roll Forming Machine is manufactured at our state-of-the-art manufacturing unit using high grade raw materials and cutting-edge technology in line with global set industry norms.

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 0

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:1250mm

3. Rollers: 10 rows

4. Dimensions: 5.3*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description: Metal Profiling Wall Panel Roll Forming Machine With Hydraulic Precut

Main parameter

No.

   Main parameter of Wall Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250 mm

3

Rollers

10 rows

4

Dimensions

5300*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting



5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 15.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 25.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 3

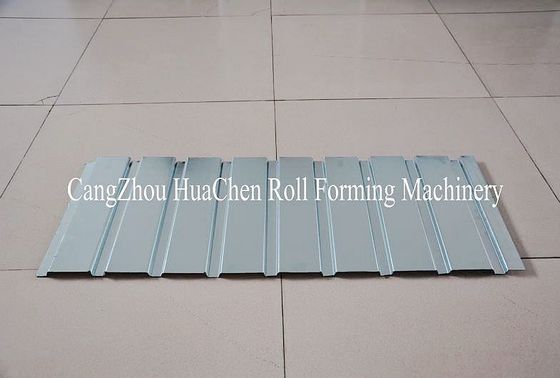

Application: Metal Profiling Wall Panel Roll Forming Machine With Hydraulic Precut



This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support

5.5 Kw Metal Wall Panel Roll Forming Machine C r 12 Cutting Blade with Hydraulic Cutting 4
