Thông tin chi tiết sản phẩm:
|
| Type: | Ridge cap roll forming machine | Usage: | Roof ridge cap |
|---|---|---|---|
| Material: | PPGI GI | Capacity: | 10-20m/min |
| Power: | 4+4KW | Control: | PLC |
| Worker: | 1 only | Warranty: | whole life |
| Điểm nổi bật: | metal forming machines,cold roll forming equipment |
||

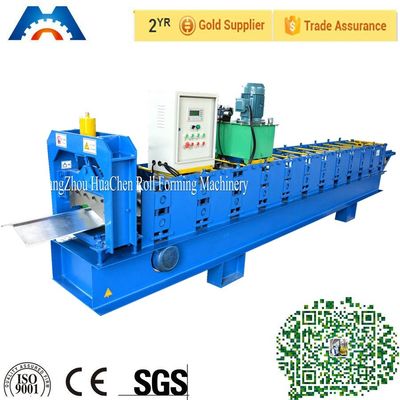

Galvanized Steel Ridge Cap Roll Forming Machine With 12 Rows
Our firm is engaged in offering a wide array of Galvanized Steel Ridge Cap Roll Forming Machine that is widely used in construction industry for making the roof tile and wall panel outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Galvanized Steel Ridge Cap Roll Forming Machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 370mm
3. Rollers: 12 rows
4. Dimensions: 6.2*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Galvanized Steel Ridge Cap Roll Forming Machine Main parameter
|
No. |
Main parameter of Ridge Cap Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
370mm |
|
3 |
Rollers |
12rows |
|
4 |
Dimensions |
6200*1150*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. sample customized
2. short production cycle
3. quality guarantee
4. high-effect, low consume
5. provide lifelong technical support
