Thông tin chi tiết sản phẩm:
|
| color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cutting |
| per month: | 30sets | workers: | 100 |
| Điểm nổi bật: | wall panel roll forming machine,metal deck roll forming machine |
||

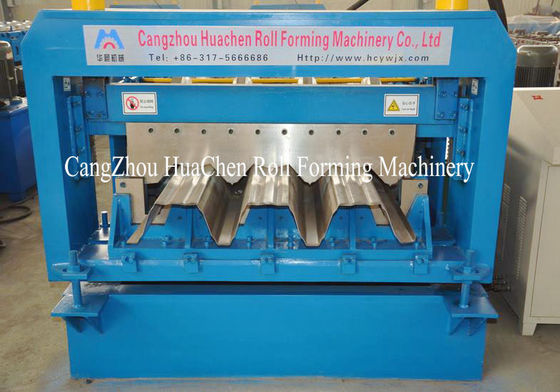

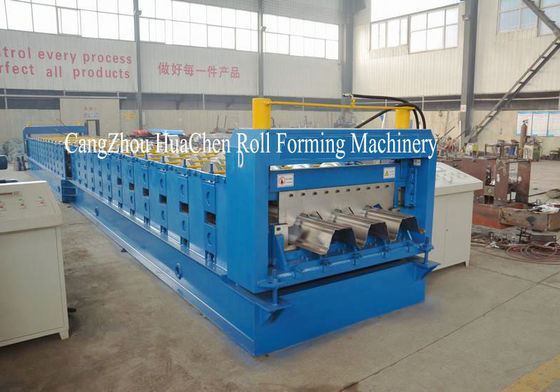

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor
Description:
Main parameter
|
No. |
Main parameter of Floor Deck Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1500mm |
|
3 |

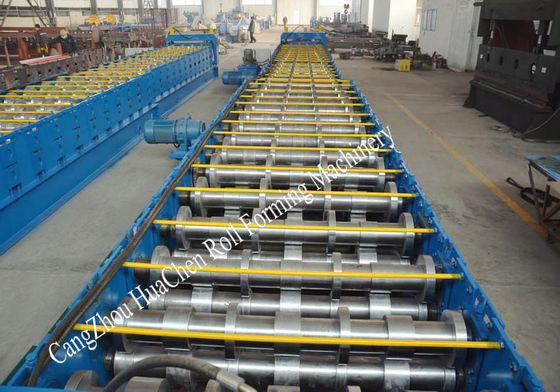

Rollers |
28 rows |
|
4 |
Dimensions |
12700*1.85*1.61m |
|
5 |
Power |
33+11.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
1.5mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

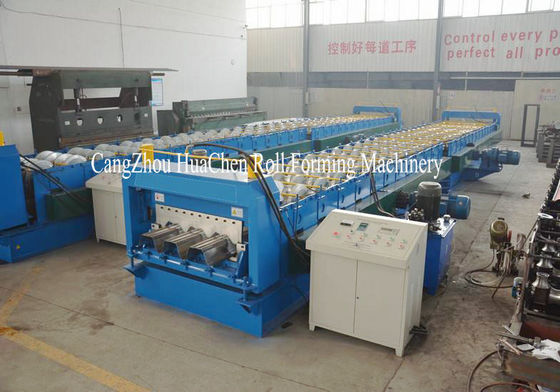

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting
Application

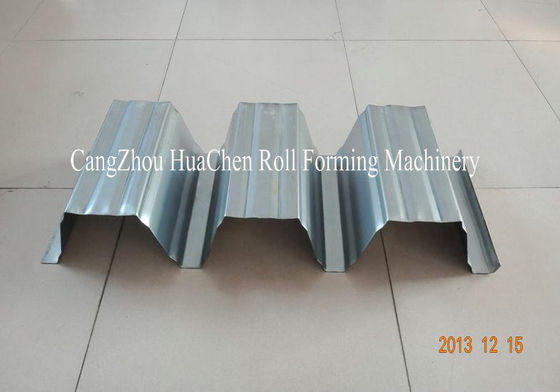

This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. ISO/CE certification
2. 20sets/ month
3. high-speed production
4. easy operate, easy maintain
5.One year free warranty
