Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic
Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic

Hình ảnh lớn :  Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC343
Thanh toán:
Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic

Sự miêu tả
Điểm nổi bật:

metal forming machines

,

cold roll forming equipment

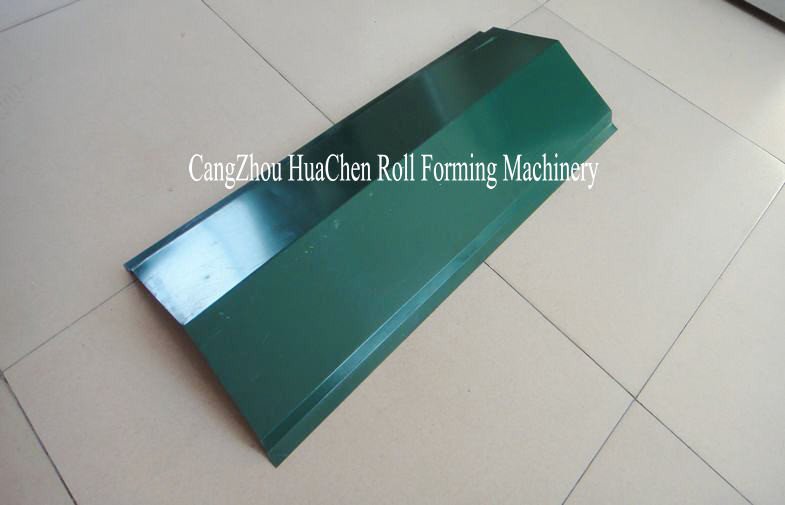

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Application

Our Prepainted Steel Roof Ridge Sheet Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Prepainted Steel Roof Ridge Sheet Roll Forming Machine

Main Roll Forming Machine
Roller station 11 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 0.3-0.8mm

Others
Speed 10m/min
PLC system EURA or customized
Weight 4.5T

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 0

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 1Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 2Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 3

Standard 686mm IBR Sheet Roll Forming Machine Parts

Detailed Images

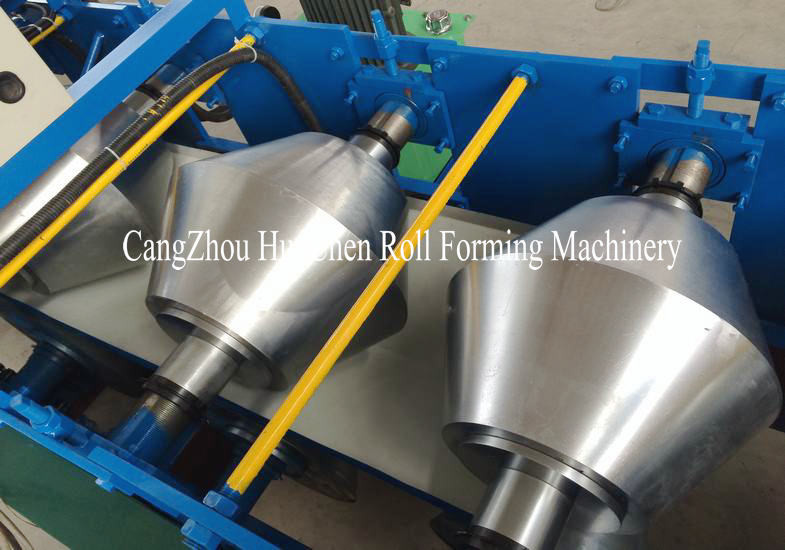

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 4 Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment



Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 5
Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 6

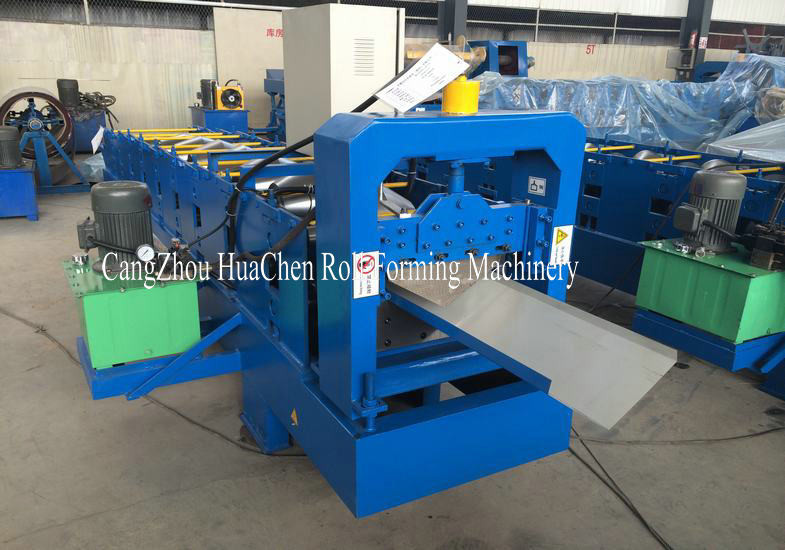

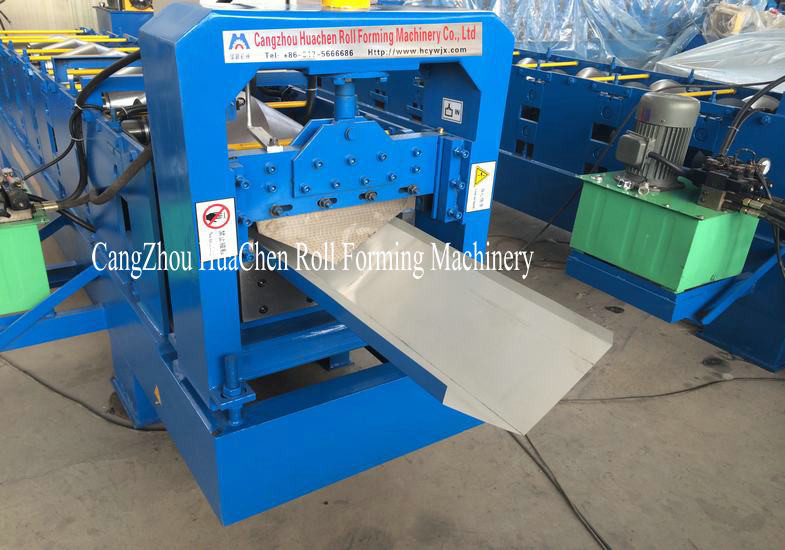

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 7 Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 8

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 9 Size: 9400 (L) * 1550 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 10 Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 11 Prepainted Steel Roof Ridge Sheet Roll Forming Machine Fully Automatic 12
