Metal Roof Sheet Ridge Cap Roll Forming Machine

Metal Roof Sheet Ridge Cap Roll Forming Machine
Metal Roof Sheet Ridge Cap Roll Forming Machine Metal Roof Sheet Ridge Cap Roll Forming Machine Metal Roof Sheet Ridge Cap Roll Forming Machine Metal Roof Sheet Ridge Cap Roll Forming Machine Metal Roof Sheet Ridge Cap Roll Forming Machine

Hình ảnh lớn :  Metal Roof Sheet Ridge Cap Roll Forming Machine

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC343
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 8000-19000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

Metal Roof Sheet Ridge Cap Roll Forming Machine

Sự miêu tả

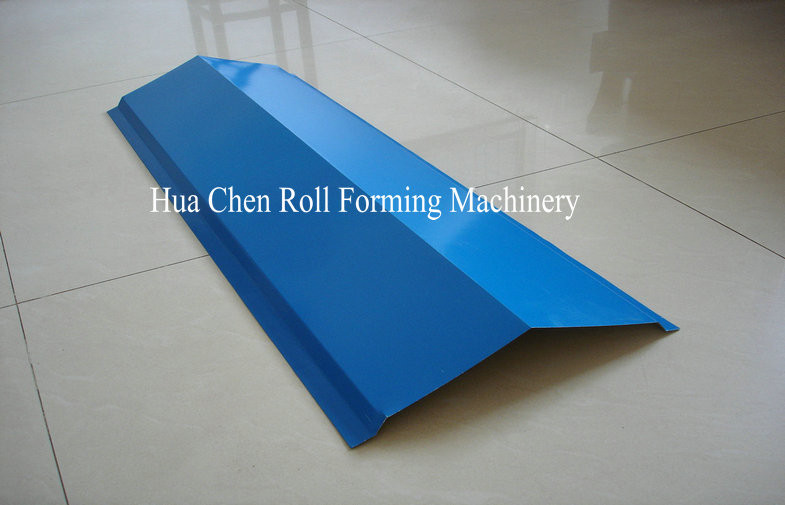

Usage: ridge cap material: steel
size: 400mm weight: 2T
roller: 45 steel warranty: 1 year
Điểm nổi bật:

roll form equipment

,

metal forming machines

Metal Roof Sheet Ridge Cap Roll Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

3. Rollers: 11 rows

4. Dimensions: 5.4*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Our Metal Ridge Cap Machine Advantage

1.Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2.Good service: we provide the technical support for whole life of our machines.

3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

6.Reasonable price:We offer the best price in our industry.

Our Metal Ridge Cap Machine Technical Parameter

No. Item parameter
1 Machine size 6500*900*1700mm
2 Machine weight 4500kg
3 Machine power 4kw
4 Hydraulic engine 2.2kw
5 Roll speed 14M/Min Max
6 Roll stations 12
7 Roller material GCr15
8 Effective width 252mm
9 Feeding width 333mm
10 Voltage 380V 50Hz 3PH/Customized
11 Material thickness 0.3-0.6mm/Customized
12 Control System Schneider/Delta/Customized



Our Metal Ridge Cap Machine Main Accesories

Metal Roof Sheet Ridge Cap Roll Forming Machine 0Metal Roof Sheet Ridge Cap Roll Forming Machine YX79-252



Description:



Ridge Cap Roll Forming Machine Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

11rows

4

Dimensions

5300*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting

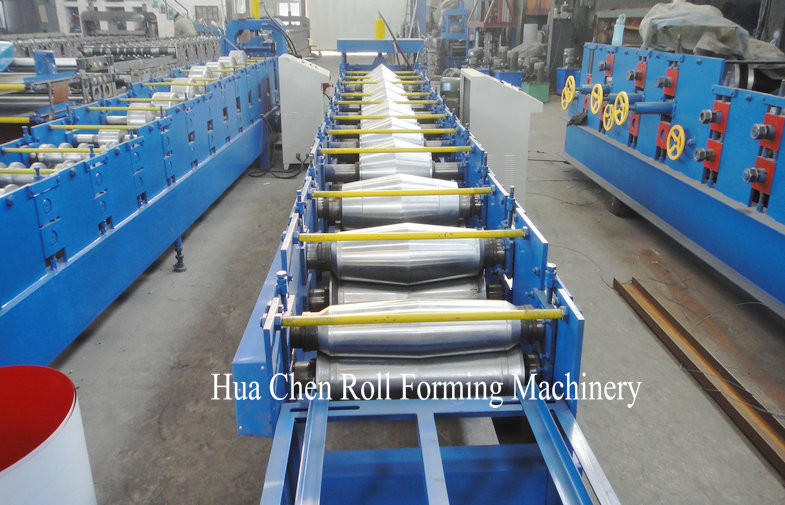

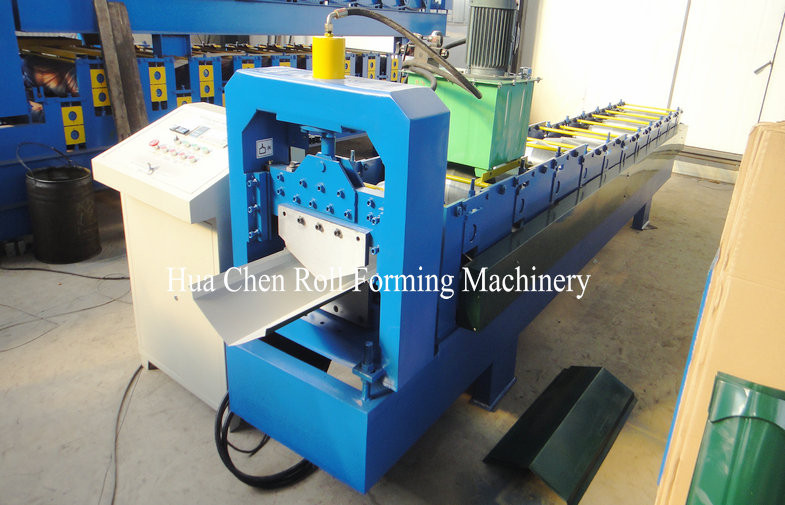

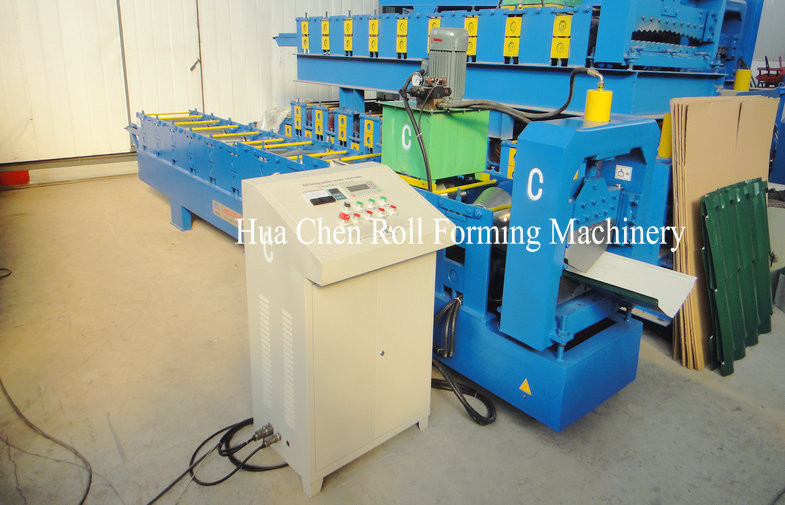

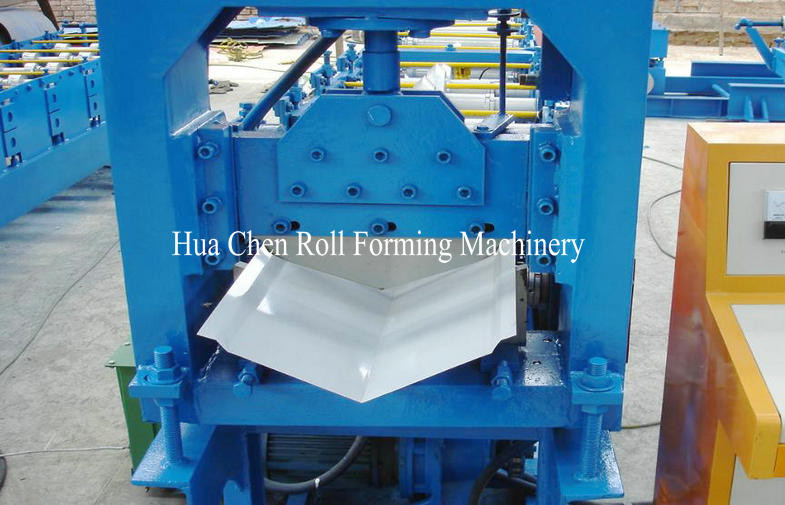

Metal Roof Sheet Ridge Cap Roll Forming Machine 2Metal Roof Sheet Ridge Cap Roll Forming Machine 3Metal Roof Sheet Ridge Cap Roll Forming Machine 4

Application



This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight
