Double layers Used Roll Forming Machine plate rolling machine

Double layers Used Roll Forming Machine plate rolling machine
Double layers Used Roll Forming Machine plate rolling machine Double layers Used Roll Forming Machine plate rolling machine Double layers Used Roll Forming Machine plate rolling machine Double layers Used Roll Forming Machine plate rolling machine

Hình ảnh lớn :  Double layers Used Roll Forming Machine plate rolling machine

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC17/35
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 18000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Double layers Used Roll Forming Machine plate rolling machine

Sự miêu tả
Feature: two design in one capacity: 20m/min
thickness: 0.3-0.6mm power: 5.5kw
weight: 7T size: 8m
Điểm nổi bật:

metal roll forming machine

,

corrugated roll forming machine

Double layers Used Roll Forming Machine plate rolling machine



Leading manufacturer in North Of China

specialized manufacturer of roll forming machine with 15 years experience

exported to more than 30 countries,such as USA,COLOMBIA,BRAZIL,PERU,JAMACIA,INDONESIA,INDIA,VIETNAM,PHILLIPPINES,BURMA,KENYA,NIGERIA,SOUTH AFRICA,MALAWIS etc.

Double layers Used Roll Forming Machine plate rolling machine 0Double layers Used Roll Forming Machine plate rolling machine 1Double layers Used Roll Forming Machine plate rolling machine 2Double layers Used Roll Forming Machine plate rolling machine 3

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000mm

3. Rollers: 12/17 rows

4. Dimensions: 9.7*1.45*1.91m

5. Power: 3+3kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Supplying components of complete machine

NO.
Description
Quantity (set)
Remark
1
5Tmanual decoiler
1
As one complete part
2
Guiding device
1
3
Pre-cutter
1
4
Forming system
1
5
Transmission system
1
6
Hydraulic guillotine
2
7
Support table
2

8
Hydraulic station
1

9
Control box
1

10
Spare parts and tools
1
As attaching list

3.General parameters



No
Item
Parameter
Note
1
Forming Speed
Max15 m/min
Excludes cutting
2
Forming station
Around 16 groups

3
Total Power
About 7 KW

4
Total Weight
About4380KGS

5
Voltage
380v,60hz,3p
it can be customized as your request




Description:

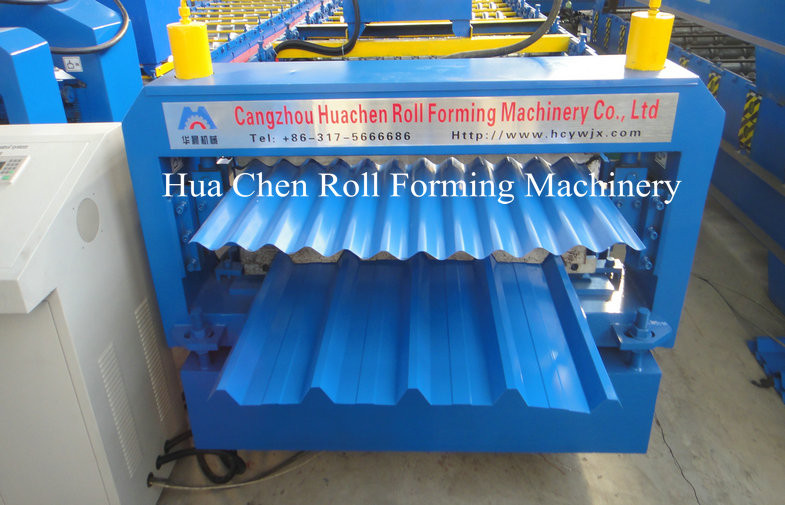

Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine



1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

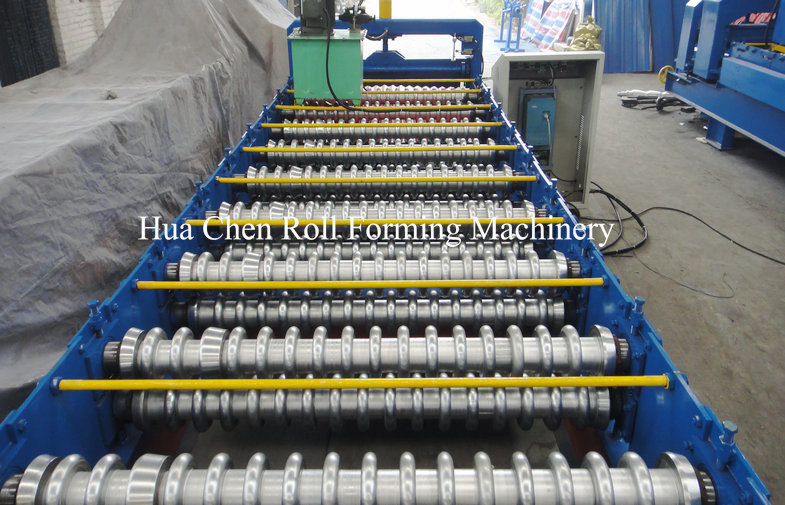

Rollers

upper level :12 rows

Down level :17 rows

4

Dimensions

9200*1450*1910mm

5

Power

3+3kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

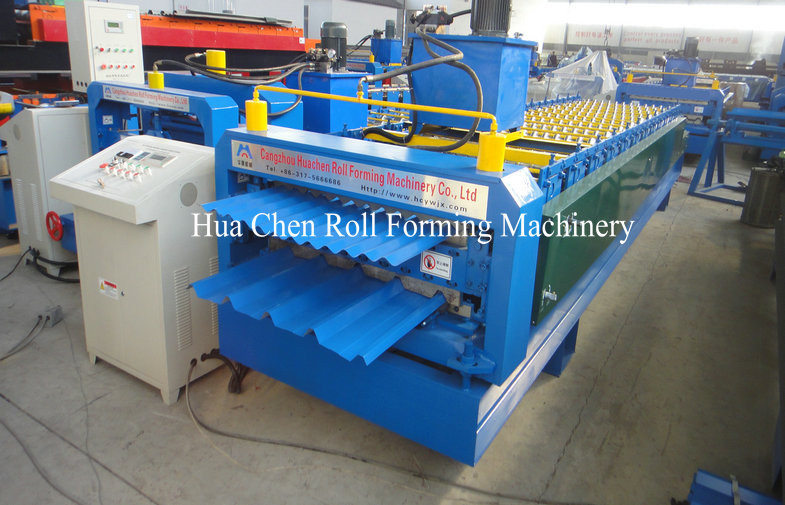

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting





Application

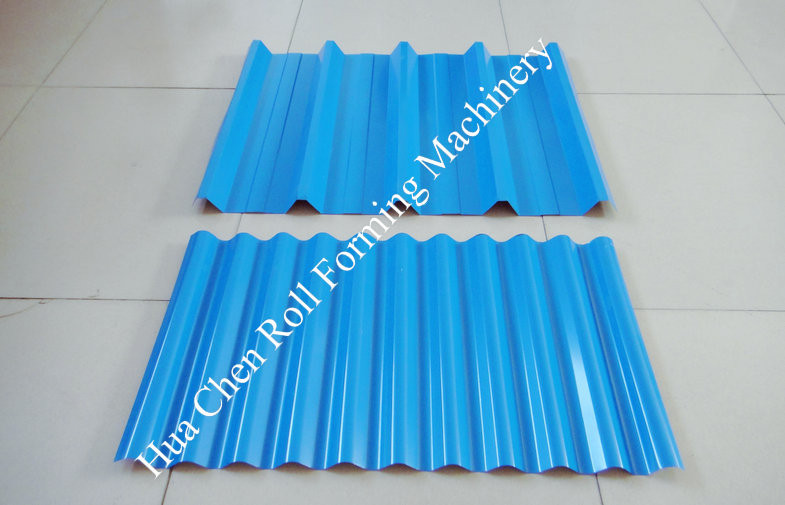

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





After-sales service



Technical Support

Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

Spare Parts

Promptly providing spare parts and wearing parts.

Upgrade

Improve technology and upgrade of equipments.



Other service

Raw Materials

Supply of raw materials made in China with good quality, quick delivery and reasonable price

Finished products purchase
