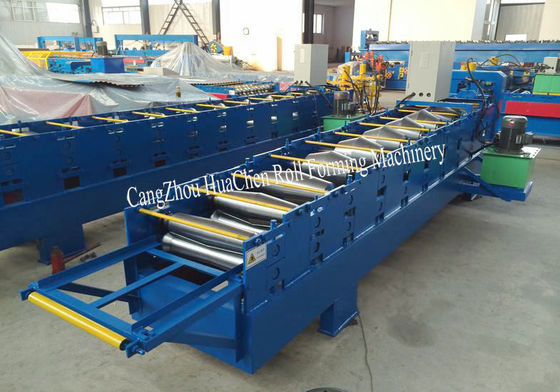

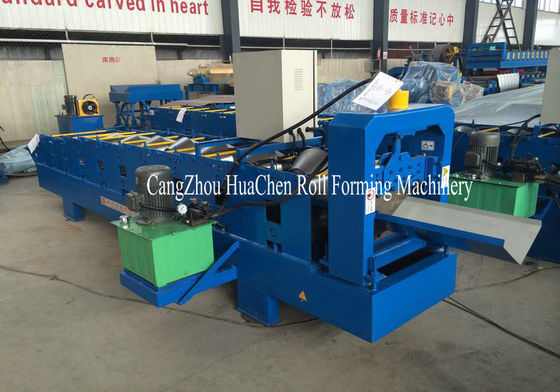

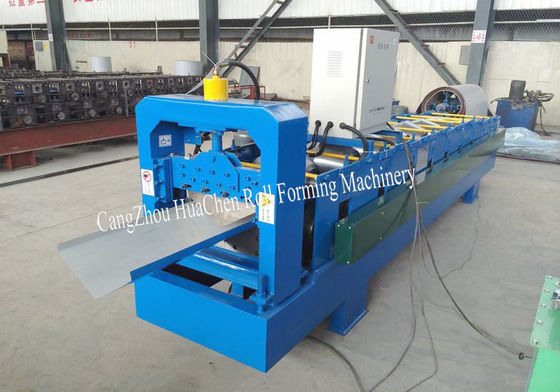

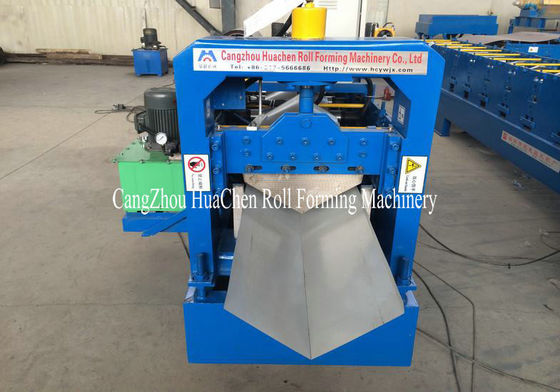

Color Coated Steel Galvanized Ridge Cap Roof Roll Forming Machine with output table
Quick Detail: Vally Ridge Cap Roof Profiling Roll Forming Machine Price
1. Suitable to process: Color steel plate
2. Width of the plate: 400mm
3. Rollers: 11 rows
4. Dimensions: 5.8*1.35*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: Vally Ridge Cap Roof Profiling Roll Forming Machine Price
|
No. |
Main parameter of Ridge Cap Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
400mm |
|
3 |
Rollers |
10rows |
|
4 |
Dimensions |
5700*1350*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
