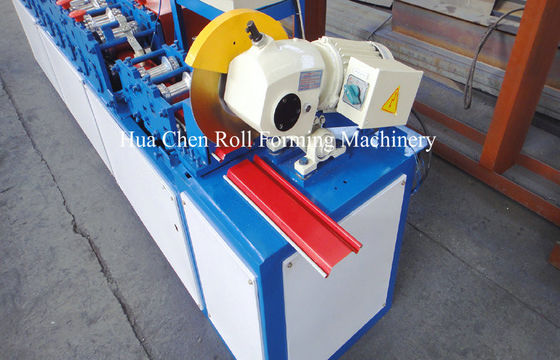

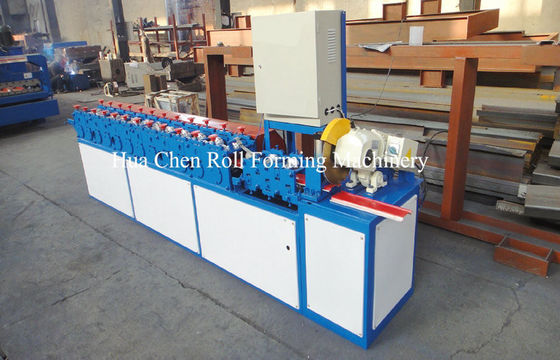

165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control

165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control
165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control 165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control 165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control 165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control

Hình ảnh lớn :  165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC90
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control

Sự miêu tả
Điểm nổi bật:

roll forming machinery

,

door frame roll forming machine

165mm Color Steel Plate Cold Roll Forming Equipment With PLC Control



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 165mm

3. Rollers: 12rows

4. Dimensions: 3.5*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Rolling Shutter Door Roll Forming Machine Main parameter

No.

   Main parameter of Rolling Shutter Door Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

165mm

3

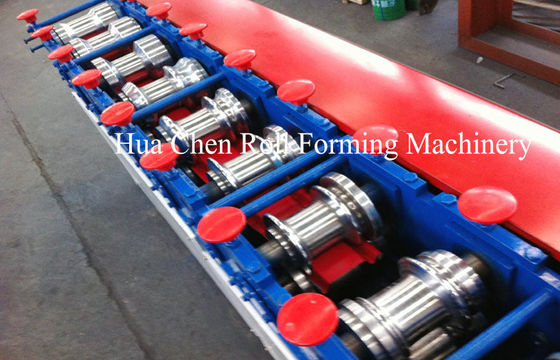

Rollers

12 rows

4

Dimensions

3500*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.6mm

7

Productivity

15m/min

8

Diameter of the roller

Φ36 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

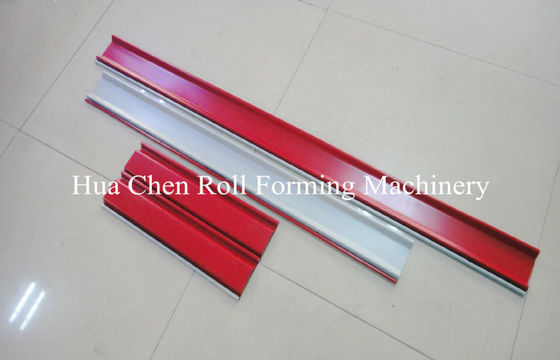

This type of sheet can be widely used as the door of garage, storage and supermarket.





Competitive Advantage





1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
