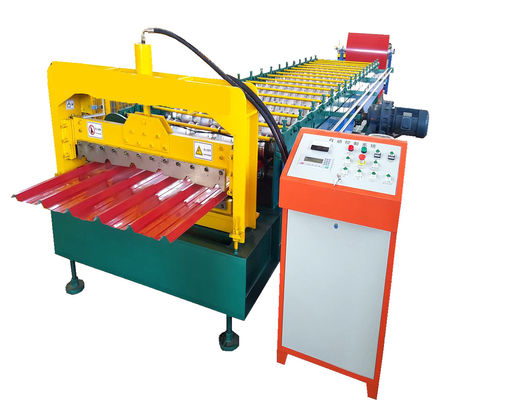

Thông tin chi tiết sản phẩm:
|
| Material: | PPGi GI | capacity: | 20m/min |
|---|---|---|---|
| machine weight: | 4.5T | rollers: | 45# steel |
| Type: | Roof Sheet Roll Forming Equipment | cutting blade: | Cr12 |
| Điểm nổi bật: | roof tile roll forming machine,roof panel roll forming machine |
||
Parameter for reference
| Description | Specification | |
| Main moter power | 5.5KW | |
| Hydraulic station power | 4KW | |
| Hydraulic oil pump | CB-E310 | |
| Sprocket | P-25.4 | |
| Roller station | 14 | |
| Yield strength | 32MPa | |
| Diameter of principal axis | 95MM | |
| Material of roller | 45#steel hard chrome plating | |
| Processing speed | 8m/min | |
| Thickness | 0.3-1mm | |
| Installation dimension about(L*W*H) | 7.5*1.5*1.2M | |
| Total weight | 3.8T | |
| Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter | ||
Material of main equipment of Roll Forming Machine
1 Roller material: high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
2 Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm
3 Cutter blade: Cr12 mould steel with quenched treatment
4 Eletric elements: control systerm with PLC model S7-200,Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time
5 Oil tank model of hydraulic systerm: CB-E310
(They can be modified according to customer requirements)
Usage:
Color steel roll forming machine is widely used in producing color steel sheet for buildings.
About us
We are special in roll forming machine for nearly 20 years, with high quality and competitive price in China.
Our company covers an area of 30,000 square meters, including separated workshop for glazed roll forming machine, sandwich panel roll forming machine, C/Z purlin roll forming machine and Plastic coated workshop etc. the showcase workshop with our products open also is waiting for your coming.
our products are popular in Russia, India, UK, USA, Kazakhstan, Tajikstan ,Malaysia, Nigeria, Rumania and Albania etc. more than 50 countries and region with acclaim.
