Thông tin chi tiết sản phẩm:
|
| type: | automatic | control system: | PLC control |
|---|---|---|---|
| cutting method: | fly saw cutting | speed: | 8-10m/min |
| Điểm nổi bật: | steel roll forming machine,door frame roll forming machine |
||

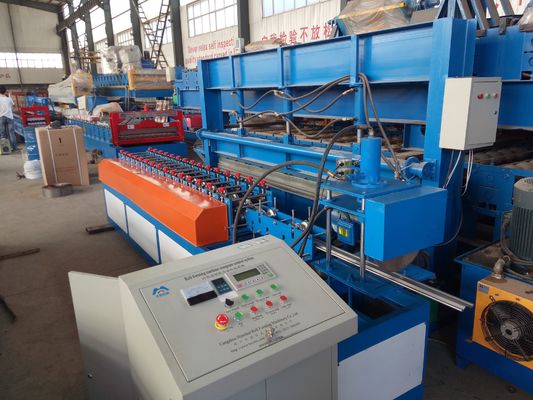

shutter door cold forming machine
a. Main technical parameter:
| Suitable plate | 0.4-1.5mm Alum or steel |
| Working speed | 10-12m/min |
| Stations | 16sets of rollers |
| Material of roller | 45# advanced steel, plated hard chrome |
| Material of shaft | 45# advanced steel(Diameter: Ø40) |
| Driven | Gear box |
| Main power | 7.5kw |
| Cutting | pneumatic following cutting |
| Material of cutting knife | Cr12,Quench HRC 58-62 |
| Hydraulic Cutting blade | 3kw |
| controlled | PLC |
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
| Active Shaft Material | High grade No.45 carbon wrought steel, |
| Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
| other elements | from famous supplier in china |
| Roller Material | High grade No.45 forged steel, coated with hard chrome. |
| Active Shaft Material |
High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft. |
| Electric Elements |
PLC control panel, transducer imported from Mitsubishi of Japan. Other elements are from famous suppliers of China. |
| Cutter blades | Cr12 mould steel with quenched treatment. |
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
