Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers
Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers
Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

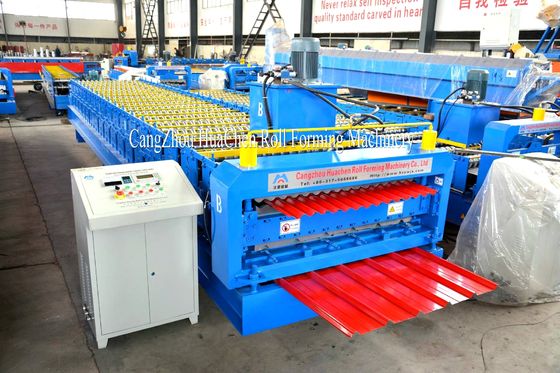

Hình ảnh lớn :  Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO/CE
Model Number: HC25-18
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 12000-17000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers

Sự miêu tả
Warranty: 18 month control system: Panasonic PLC
cutting method: hydraulic cut working speed: 8-10m/min
Điểm nổi bật:

sheet metal roll forming machines

,

corrugated roll forming machine

Product Description

Double layer roll forming machine with the capable of forming a limited site area in two sections, and can quickly transform products, affordable, can be the perfect combination of the two models of devices into one, two plate replacement time becomes shorter, and also improve the rate of output.

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Auto Main Forming System
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm Down level 95 mm
◊ Forming station: Upper level 12 stations. Down level 12 stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

 Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers 0Corrugated Steel Double Layer Roll Forming Machine Metal Roofing Panel Roll Formers 1



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
