Thông tin chi tiết sản phẩm:
|
| Material: | PPGi GI | capacity: | 20m/min |
|---|---|---|---|
| machine weight: | 4.5T | rollers: | 45# steel |
| Type: | Automatic Roof Roll Former | cutting blade: | Cr12 |
| Điểm nổi bật: | roof tile roll forming machine,roof panel roll forming machine |
||

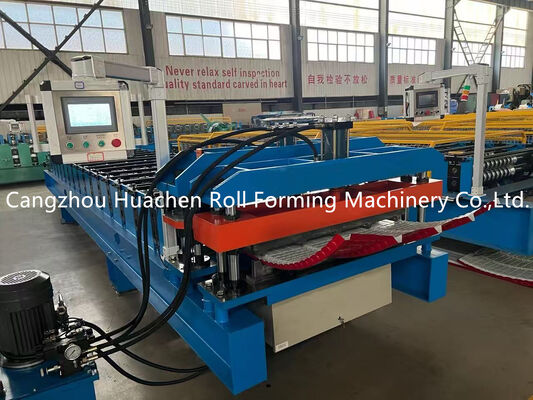

Components of corrugated iron sheet machinery
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | Set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | post cut | set | 1 |
| 6 | electric motor | set | 1 |
| 7 | output table | set | 1 |
corrugated iron sheet machinery production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
| NO. | Items | parameters | Remark | |
| 1 | Suitable Material | type | GI/PPGI/AL | |
| Width | 1200mm | Custom | ||
| Thickness | 0.3-1mm | |||
| Product specifications | length | any length | ||
| length tolerance | ± 2mm | |||
| 3 | Working Speed | 8m-25m/min | Standard machine | |
| 4 | Control System | PLC | Custom | |
| 5 | Total Power | 5.5-11 KW | ||
| 6 | Total Weight | About 5-7.5 T | Up to final design | |
| Packaging Details: | 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container. |
|---|---|
| Delivery Detail: | 45 days after receipt of buyer's deposit |
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2.After Sevice
3.a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
