Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System

Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System
Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System

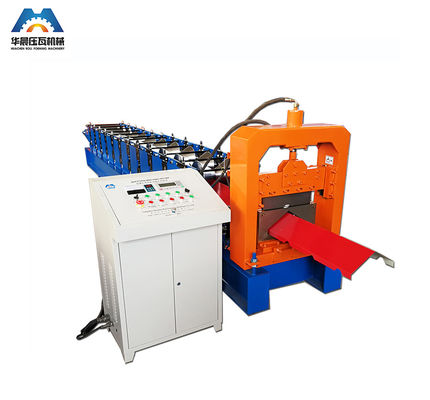

Hình ảnh lớn :  Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC500
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 13000-29000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System

Sự miêu tả
Điểm nổi bật:

roll form equipment

,

cold roll forming equipment

Product Description

Steel forming machine is to produce light steel main equipment, the use of steel or steel cold-formed after forming, rolling production models of a variety of specifications purlins finished.

The wall thickness of the product out of the apparatus can be made very thin, but also greatly simplifies the production process, improve production efficiency. Wall thickness can be produced hot-rolled with the general method but difficult to produce a uniform cross-sectional shape of the complex variety of profiles and cold-formed steel of different materials.

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Main Forming System
◊ Width & Height & Thickness of sheet: According to Drawings
◊ Material: GI sheet coil or Colored sheet coil
◊ Motor Power: 5.5 kw forming system
◊ Roller material:Cr12.
◊ Surface of Roller: Heat treatment HRC58-60.
◊ Diameter of main shaft: 60mm #45 steel, heat treat modulation
◊ Forming station: 12 stations.
◊ Transmission: by chain and gear
◊ Measuring accuracy: +/- 0.5 mm/M.
◊ Safety Hood: Cage
◊ Arch middle plate: 30mm thickness.
◊ Output: 8-10 Tons per shift (8 hrs.).
◊ The machine base is assembled and welded by high quality steel.
Hydraulic Cutting Device
◊ Cutting way: Tracking (Flying)..
◊ Oil pump station: 1set
◊ Motor power of Oil pump station: 7.5kw with cooling system.
◊ Forced air cooling device available.
◊ Cutting mould: 1 sets.
◊ Material of blade: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

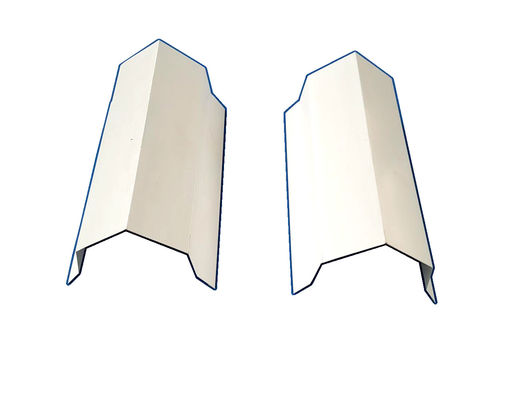

Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System 0Professional Metal Roll Form Equipment With Cage Safety Hood , 5.5 Kw Forming System 1

Why choose us?
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
