Thông tin chi tiết sản phẩm:
|

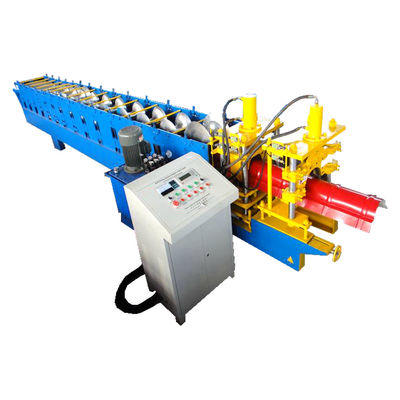

| Name: | China metal roof ridge cap roll forming machine | Control System: | PLC Delta Inverter Control |
|---|---|---|---|
| Power Supply: | 3-Phase,380V,50Hz | Main Frame: | 350 H-Beam |
| Điểm nổi bật: | roll form equipment,cold roll forming equipment |
||
| Specification |
| Name | China metal roof ridge cap roll forming machine |
| Control System | PLC Delta Inverter |
| Power Supply | 3-Phase,380V,50Hz |
| Main Frame | 350 H-Beam |
| Main Power | 5.5kw |
| Pump Power | 3kw |
| Forming Speed | 10 m/min |
| Roll Station | Upper Level 11 Stands, Down Level 11 Stands |
| Roller Diameter | 70mm |
| Hydraulic Pressure | 10-12 MPa |
| Forming Size | 840mm, 900mm |
| Feeding Thickness | 0.3-1.2mm |
| Feeding Width | 1000mm |
| Backboard Thickness | 14mm, 16mm |
| Chain Size | 20mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 7000×1500×1600mm |
| Total Weight | 4.5T |
| Components of Roof Tile Making Machine |
| No. | Component | Qty |
| 1 | Main forming machine | 1set |
| 2 | Manual decoiler | 1set |
| 3 | PLC control system | 1set |
| 4 | Post cut | 1set |
| 5 | Hydriculic pump station | 1set |
| 6 | Electric motor | 1set |
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
