Thông tin chi tiết sản phẩm:
|Type:||Tile Forming Machine||Power(W):||4+4kw|
1. The advantage

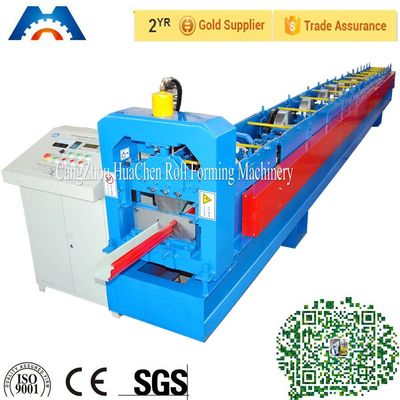

gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
|No.||main parameter of gutter roll forming machine|
|1||Suitable to process||Color steel plate|
|2||Width of the plate||200-600mm|
|6||Thickness of the plate||0.3-0.8mm|
|8||Diameter of the roller||52mm|
|9||Weight||About 4.5 T|
|10||Voltage||380V 50Hz 3phases|
|11||Rolling material||Carbon Steel 45#|
|12||Material of the cutting plate||Cr12|
|13||Processing precision||Within 1.00mm|
|14||Control system||PLC control|
|15||Side panel of machine||14mm|
|16||Main structure of the machine||300 H steel|
|17||Weight||About 4.5 T|
3. some pictures of
Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
