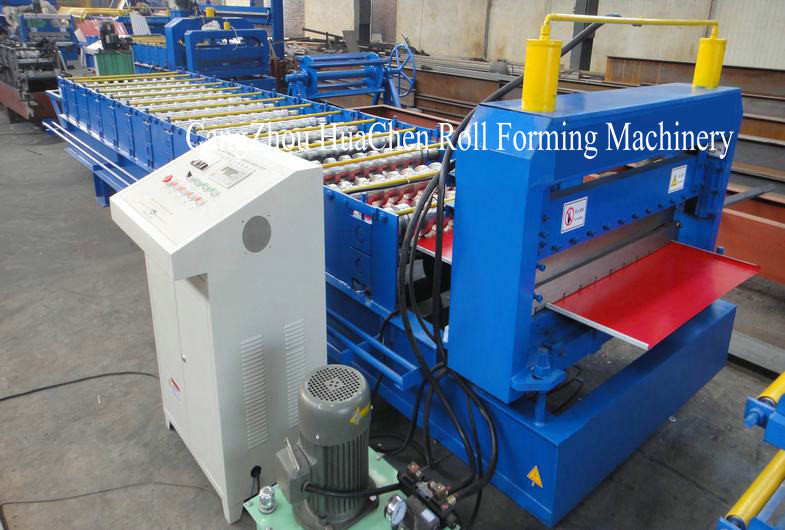

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

Galvanized Metal Roofing Sheet Roll Forming Machine Automatic Standing Seam

1.Smmary:

2. Specification:

1. Uncoiler

• Manual Type
• Weight of Coil: 5-8T
• Inner Dia.: 508-610mm
• Outer Dia.: 1200-1500mm
• Material Width: 300-1220mm

2. Hydraulic Cutting

• Raw Material: Galvanized Steel Coils
• Suitable Coil Thickness:0.4-1.2mm(Aluminum), 0.3-0.6mm(GGPI)
• Suitable Coil Width: 300-1220mm
• Material of Cutting Blade: Cr12MoV
• Hardness of Shearing Blade: HRC58–60
• Hydraulic Power: 3KW
• PLC Control Box: 700mmx1000mmx300mm
• Touch Screen,Frequency Converter and Encoder are all Panasonic brand from Japan

3. Roll Forming Machine

• Roll Stations: 18 stations
• Forming Speed: 14m/min
• Material of Roller: High-grade 45# steel coated with hard chrome 0.05mm thickness
• Dia. of Shafts: 76mm
• Material of Shaft: 45# Steel
• Material of Roller:45#steel coated with hard chrome 0.05mm
• Material of Siding Plate:A3 steel -welded structure
• Transmission: 1.5' Chains
• Adjustable Siding Plate: 18mm thickness, with 2 separate siding plates adjustable by electrical control after precision processing. The siding plates can be adjusted according to customers’ requirements on the width of the profiles.
• Material of Main body construction: 45# “H” Profile Steel
• Transmission Type: 1.0' 16A Chains
• Material of Chains: 45#steel with heat treatment HRC45-50°
• Tolerance of Length: ±2mm
• Main Power: 5.5KW
