Thông tin chi tiết sản phẩm:
|
| Hàng hiệu: | HC | type: | Roofing Sheet Roll Forming Machine |
|---|---|---|---|
| rollers: | 24 | roller material: | No.45 steel |
| warranty: | 12 month | payment term: | T/T |
| Điểm nổi bật: | cold roll forming machine,roof panel roll forming machine |
||

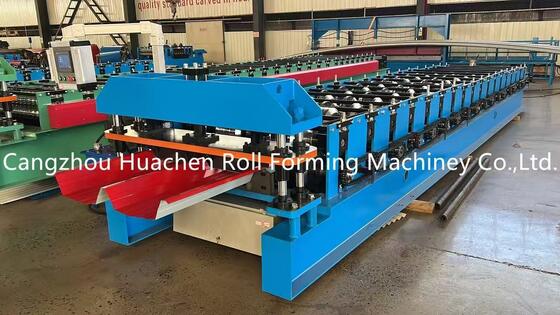

24 Rollers Steel Roofing Sheet Roll Forming Machine With 12 Month Warranty
Product Specifications
| Roller steps | 18 upper layer/18 bottom layer |
| Dimension | 9200*1600*1550mm |
| Weight | 5t |
| Feeding width | 1200mm |
| Forming thickness | 0.28-0.8mm |
| Large frame | 400mm H-Beam |
| Diameter of roller | Φ75mm |
| Middle plate | 16-25mm |
| Chain Size | 1 inch |
| Voltage | 380V 50HZ 3 phases or customized |
| Motor power | 4kw |
| Pump station power | 3kw/(7.5kw hydraulic motor) |
| Transducer power | 3.5kw |
| Cutting system | Hydraulic cutting(avoiding noise and smooth cut) |
| Material of cutting | Cr12 |
| Control system | PLC brand :Panasonic |
| Length error : ±2mm | |
| Production capacity | 2-3m/min |
| Warranty | 1 year and we provide technical support for whole life, and overseas service |
| Maintain | Easily :Timely adding oil |
| Payment terms | 30% in advance, the balance before delivery |
| Package | Standard package |
| Delivery | 35 days after receiving the deposit |
