Galvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color Coated

Trung Quốc Galvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color Coated nhà cung cấp

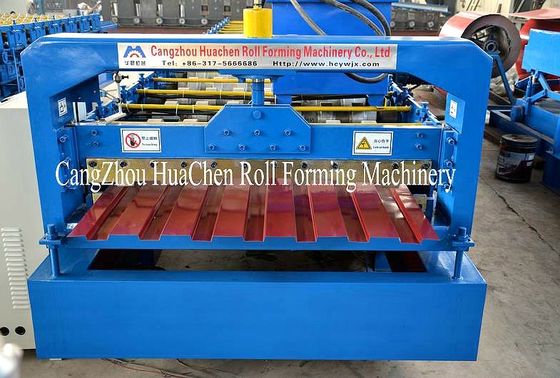

Hình ảnh lớn :  Galvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color Coated

Thông tin chi tiết sản phẩm:

Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC17

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: 9000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Chi tiết sản phẩm
type: Roofing Sheet Roll Forming Machine rollers: 17
roller material: No.45 steel warranty: 12 month
Use: roof Power(W): 7.5kw

Galvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color Coated

Product Description


CostPro panel lines

Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.



However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.



Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.



What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:



We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles

Galvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color CoatedGalvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color CoatedGalvanized Standing Seam Roofing Sheet Roll Forming Machine Blue Color Coated



Brief introduction



This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.





Technical Parameters





NO Item Para Memo

1



Suitable material Type Color steel sheet
Thickness (mm) 0.5-0.6
Yield Strength (Mpa) 230-300
Width (mm) According to the profile
2 Producing Speed (m/min) 8-10 including cutting time
3

Forming main

motor power(KW)

7 Depend on actual design
4 Hydraulic station power(KW) 9 Depend on actual design
5

Uncoiler hydraulic

motor power

3 Depend on actual design
6 Uncoiler motor power 2.2 Depend on actual design
7 Total power 21.2 Depend on actual design
8 Power AC380V,50Hz,3 Phase According to customer
9 Dimension (L×W×H, m) 20×3×2 Depend on actual design



Components



Name Model/Name Quantity Technical Description
1. Decoiler system Arm type automatic decoiler (With ultrasonice control) 1set Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.
2. Main forming system Pre-shearing device 1set

1.Roller material:No.45 steel with surface hard chrome painted.

2. Roller shaft material: No.45

3. Roller inner supporting structure type: guide column

4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear

5.Cutting blade material Cr12 quenched treatment

6.Punching die material adopts No.45 steel with nitride treatment.

Feeding guide device 1set
Film covering device 1set
Roll forming system 1set
Pressing system 2set
Post-cutting device 1set
Complete safety cover 1set
3. Output system Support table 2set For supporting the finished plate
4. Hydraulic system 1set Separated hydraulic station for the main machine and decoiler.
5. Electric control system 1set

1. PLC Control, encoder automatic cutting in length

2. Operation stage: Touch screen+ button

3. AC frequency for adjusting the speed







Working process



Decoil →Guiding system →Roll forming →Punch to length→Cut to length →Output the finished products

FAQ



FAQ


Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: What sales terms do you have?

A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?

A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

Q: What kind of controls do you use on your machines?

A: AMS, Delta, Schneider, Siemens, and Mitsubishi

Q: What is your delivery time?

A: Depending on the type of machine, duration of 25 days to 185 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes.Regular updates on progress will be sent to you.
