Thông tin chi tiết sản phẩm:
|
| type: | Roofing Sheet Roll Forming Machine | rollers: | 15 |
|---|---|---|---|
| roller material: | No.45 steel | warranty: | 12 month |
| Forming Steps: | 16 | Cutting Blade: | Cr12, hardness HRC60-62 |
| Điểm nổi bật: | roof tile roll forming machine,roof panel roll forming machine |
||

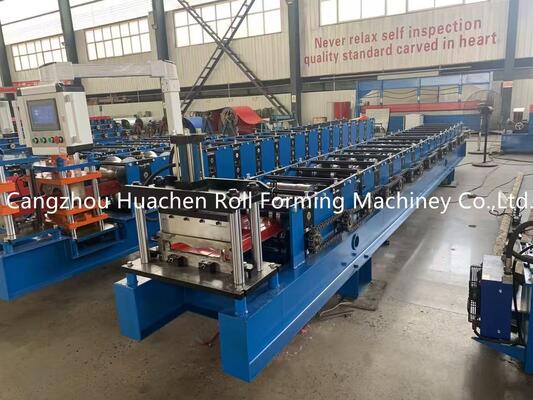

This roofing tile machine is special roll forming machine for steel sheet cold-form industries. It can continuously form the steel sheet into the roofing tiles according to customer’s requirement and cut to length automatically. This equipment has many advantages with high forming speed, low noise, stable transmission, easy operation, good looking and so on.
Basic Specification of the line
| NO. | Items | Unit | Main specification |
| 1 | Suitable Material | mm | 0.45-0.8mmx 1220mm |
| 2 | Forming speed | m/min | 5m/min |
| 3 | Roll station | / | 15 stations |
| 4 | Main power | kw | 7.5 |
| 5 | Hydraulic power | kw | 5.5 |
| 6 | Control system | / | PLC, panasonic/Siemens |
| 7 | Drive | / | by chain |
| 8 | Way of decoiler |
5T hydraulic decoiler |
when you find any parts damaged or broken during the first year of the machines running,we will replace the parts for free.
If miss used by the buyer or man-made problems in the operation of the machine no warranty covered
Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
