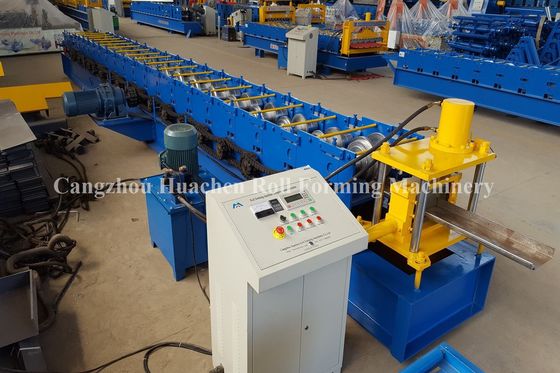

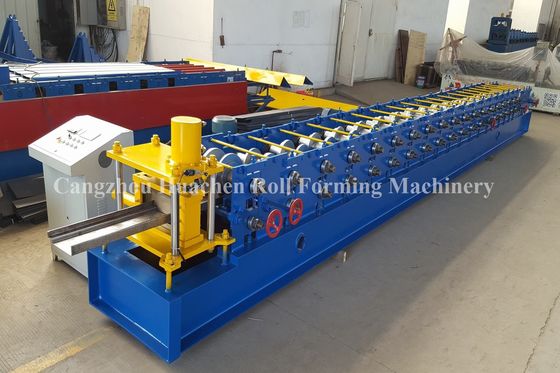

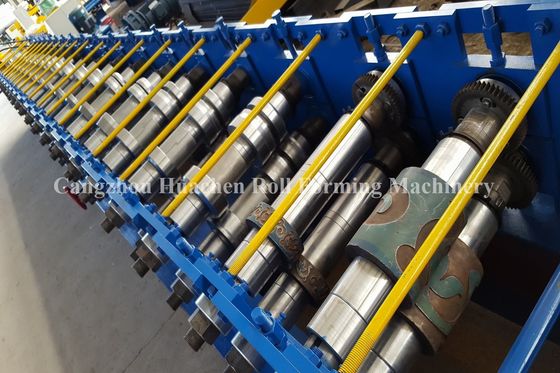

Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width

Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width
Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width

Hình ảnh lớn :  Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC146/196
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 12000-29000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width

Sự miêu tả
Điểm nổi bật:

steel frame roll forming machine

,

Roll Forming Machinery

Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width

Specifications

Door roll forming machine: material for producing roofing:

Normal colored painted and galvanized sheets with yield strength 245, 345MP



a. Main Accessories:



(1) Main Forming Machine;

(2) 3 Tons Manual Uncoiler;;

(3) Hydraulic System;

(4) PLC Computer Controlling System with Touch Screen

(Brand: Delta for PLC, touchingscreen,encorder and frequency changer);

(5) Hydraulic Forming Cutter;

(6) Run Out Tables(3 Units);

(7) Operation Manual.



b.Main Technical Data



Size 4000*900*1400mm
Weight 2500KGS
Hydraulic Motor Power 4KW
Effective Width 85mm
Material Width 136mm
Forming Steps 14 steps
Processing Speed 8-12m/min
Voltage 380V/50HZ/3PH
Material of principal axis high grade 45# forged steel
Material of roller GCr15 with hard chrome plating
Material of blade Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine Fine welded structural steel
Sprocket wheel 45 steel high-frequencies quench

Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width 0Steel Security Door Frame Roll Forming Machine with 14 Steps , 85 mm Effective Width 1

Material for producing roofing: normal colored painted and galvanized sheets with strength 245, 345MPA;

Warranty: 1 year and life-long maintain;

Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.

Installation Days: about 5-7 days



Installation and Training:


If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
