7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

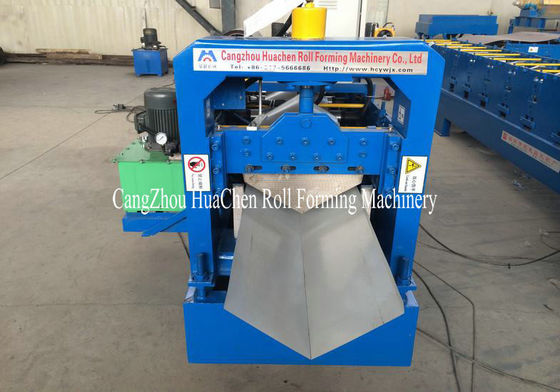

7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House
7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

Hình ảnh lớn :  7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC343
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 8000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House

Sự miêu tả
Điểm nổi bật:

roll form equipment

,

cold roll forming equipment

Detailed Product Description




7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House



Quick details:



1. Condition: New, Type: Tile Forming Machine

2. Tile Type: Steel, Use: Roof

3. Place of Origin: Wuxi, Brand Name: LUOLE



Description



The ridge caps made by our Steel Roof Ridge Cap Cold Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc .



Specifications



  • Material thickness: 0.3-0.6mm for Roof Ridge Cap
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 2 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 7.5 Kw
  • Forming Station: approx 15 ( depend on profile drawing )
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton



Main Components



  • Decoiler ---------------------------------------------=- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • Main roll forming machine --------------------------- 1 Unit
  • Hydraulic pressing device --------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- ---1 Unit



Working Flow


Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table



7.5Kw Tile Roof Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House



Reference Pictures

7.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House 17.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House 27.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House 37.5Kw Ridge Cap Roll Forming Machine 0.3mm - 0.7mm for Steel Prefab House 4





Application



Roof ridge cap, ridge cap, ridge tile; ridge valley; ridge flashing; valley flashing; top hat cap, top ridge cap.



Our Advantages



1. Specialized in Steel Roof Ridge Cap Cold Roll Forming Machine since 2004.

2. Keeping improving the quality.

3. Low labor cost.

4. Convenient transportation.

5. Complete supporting industries.
