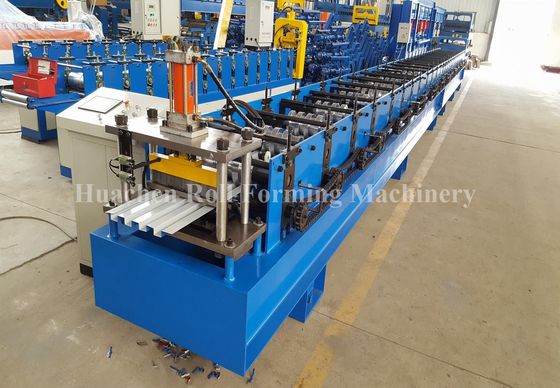

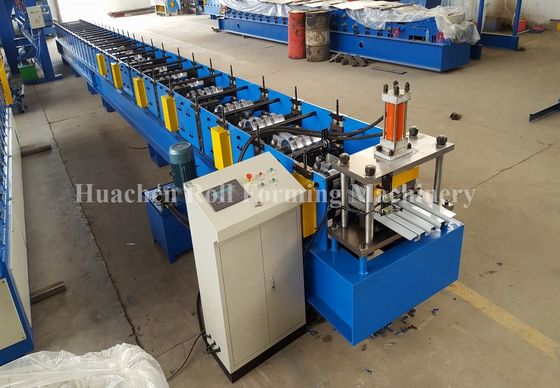

Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler

Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler
Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler

Hình ảnh lớn :  Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC25
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 30000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler

Sự miêu tả
Điểm nổi bật:

sheet metal rolling equipment

,

roof sheet making machine



Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler



Specification



NO. ITEM PARAMETER NOTE

1.







Suitable

material



Type

Pre-painted sheet,

Galvanized sheet


Width(mm) 609mm
Thickness(mm) 0.3-0.8mm
Yield stress(mm) G220-G300
2.

Product

specifications

Detail as the attached file
Length Any length
3.

Power

requirement



Type 380v/3ph/50hz Motor brand shanghai Lichao
Main Motor power 5.5kw
Cutter power 5.5kw
4. Forming speed(m/min) 10-15m/min Not include the time of cutting
5.

Manual Decoiler



(Optional)

Type Manual
Max capacity 5t
Suitable coil OD(MM) 1250

Suitable coil

ID(MM)

508

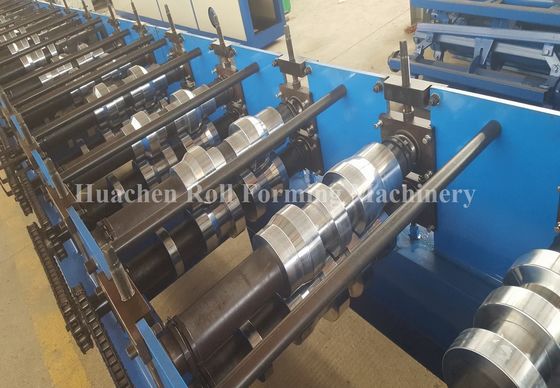

6. Forming stand 26 Depend on actual design
7. Thickness of structure 16mm
8. Forming shaft diameter(mm) 70 solid
9. Type of cutting

Roll formed and

length-set cutting


10. Control system Panasonic PLC and inverter
11. Install dimension(depend on the final design) 10.2m×1.5m×1.3m Without panel length
12. Total weight (Approx) .7T Depend on final design


Steel Plate roof sheet making machine , Wall Panel Forming Machine With Hydraulic Decoiler 0

Flow chart

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving

Steel Plate Roofing Sheet Wall Panel Roll Forming Machine With Hydraulic Decoiler



Description

This model of machine make the models of roofing sheets is classical effective width 1000mm.Height is a little more, and it needs 20 stataions of forming Rollers to form. The finished roof panels beautiful and overlap very good.

Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily

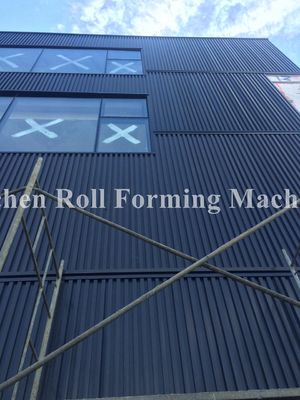

Applications:



Standard Roof panel are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,

shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and

different kinds of greenhouses



Company Introduction
Huachen Roll forming machinery is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
