Thông tin chi tiết sản phẩm:
|
| Điểm nổi bật: | sheet metal rolling equipment,roof sheet making machine |
||
|---|---|---|---|

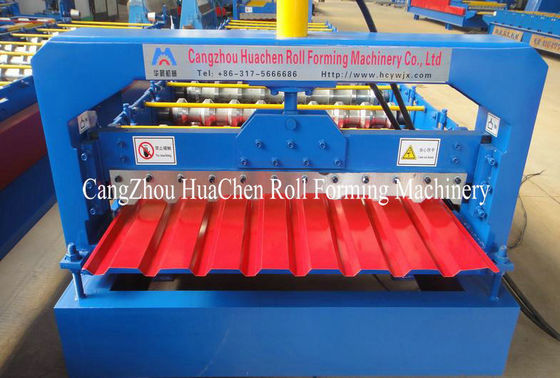

ISO Power Floor roof tile roll forming machine with Gear Box Transmission
Technical Datas of Floor Tile/Roof Wall Panel Roll Forming Machine
| 1 | Material Width | 914-1580mm |
| 2 | Effective Width | 680-1350mm |
| 3 | Thickness of Coil | 0.28—1.8mm |
| 4 | Application | Wall Sheet and Roof Sheet |
| 5 | Estimated Dimension | (8000-14000)mmX1500mmX1300mm |
| 6 | Total Weight | 5-15 Tons |
| 7 | Main Power | 5.5-37 KW |
| 8 | Decoiler | Manual or Hydraulic Decoiler |
| 9 | Inner Diameter | 508--610-640mm |
| 10 | Outer Diameter | 1200mm |
| 11 | Loading Weight | 5-15T |
| 12 | Forming Speed | 12—30m/min |
| 13 | Forming Station | 14-25 |
| 14 | Bracket | Welded with 36 # I-steel |
| 15 | Material of Shaft |
High Grade 45# Steel with 1st Rough Finished and then 2th Refined Finished |
| 16 | Diameter of the Roll | 75-100mm |
| 17 | Material of Roller |
High Quality 45#Steel Coated with Hard Chromium 0.05mm |
| 18 | Processing Technology | Rough Processing ---Refined Processing--Hard Chromium Plating. |
| 19 | Material of Rack |
Complete Welded Structure of A3 Steel Plate 20 mm Thickness |
| 20 | Transmission | Chain or Gear Box |
| 21 | Material of cutting blade | Cr12 with Quenched Treatment 60-62 ° |
| 22 | Cutting system | Hydraulic Stop or Tracking Cutting |
| 23 | Voltage |
380V/50HZ/3 Phase or as Customer Require |
1. We have a special engineer design, who has worked for big German, K.S.A, Yemen, Taiwan etc company for more than 20 years.
2. The whole lines are Taiwan Design, while made in China, saving your cost more than half but equally perfect quality.
3. The whole lines are made to be very heat and cold resistant, making it work well in very extremly hot or cold environment such as Mid East or Turkey.
Floor Tile Forming Machine/Roof Wall Panel Roll Forming Machine -- Configuration
10 Tons Decoiler(manual or hydraulic) -- 1 unit
Roll Forming Machine -- 1 unit
Tracking Cutting System -- 1 unit
PLC Control -- 1 unit
Hydraulic Station -- 1 unit
12m Auto Stacker or Run Out Table -- 1 unit
Spare Tools --1 box
Floor Tile Forming Machine/Roof Wall Panel Roll Forming Machine -- Working Process
10 T Hydraulic Decoiler with Coil Loading Car → Guided Feeding →Roll Forming→
Hydraulic Tracking Cutting → 12 m Automatic Stacker
