Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine

Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine
Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine

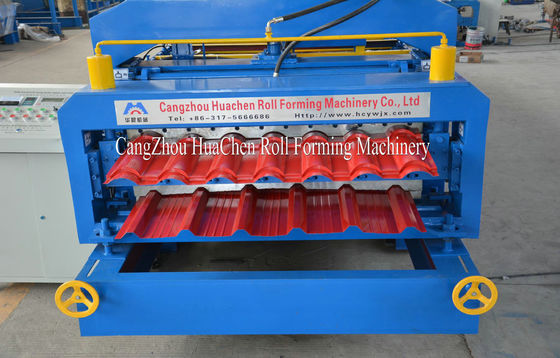

Hình ảnh lớn :  Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO/CE
Model Number: HC26-25
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine

Sự miêu tả
Power(W): 4+5.5kw Warranty: 18 month
control system: PLC control cutting method: hydraulic cut
working speed: 2-10m/min per month: 30 sets
Điểm nổi bật:

sheet metal roll forming machines

,

corrugated roll forming machine

Corrugated Iron cold roll forming equipment , Concrete Roof Tile making Machine



Product Description


1.. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Processing technique and deployment

corrugated Iron roof making machine double layer roll forming machine roof tile making machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.

User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.



2. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Components of line:

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4 Pressing System set 1
5 Cutting System set 1
6 Output Table set 1



3. corrugated Iron roof making machine double layer roll forming machine roof tile making machine parameters

corrugated Iron roof making machine double layer roll forming machine roof tile making machine Description Introduction
Working efficiency

8-12m/min



Thickness of Material

0.3--0.8mm

(can be changed according to customers need)



Width of material

914mm;940mm;1000mm;1200mm;1220mm;1250mm

According to customers need



Control system

PLC(The brand can be choose)



Uncoiler system

5Ton Manual Operation(1250mm width)



Forming by rolling

13 rows

(According to the machine design)



Roller material

GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated



Shaft and the diameter of axle

45#Aluminium-processing ,diameter of axle=80mm



Main part power

5.5kw



Hydraulic motor power

4kw



Hydraulic pressure

12Mpa



Scissor material

Cr12Mov, herd steel HRC 58-62°C



length tolerance

±1.5mm



voltage

380V, 50HZ,3 phase

(adjustable by customer needs)



Frame form

Middle plate



Driving Method

Chain



Color

Yellow and blue(adjustable)



Size

length*Width*Height - 8.2*1.65*1.5m



weight

about 5.0T



Package

Nude package in 1*20GP container



Delivery date

30 working days



Payment Method

30% T/T in advance and balance

70% after inspection confirmation before shipment.



If you have your own drawing, please send it to us,

we can design the machine, depend on your drawing.
