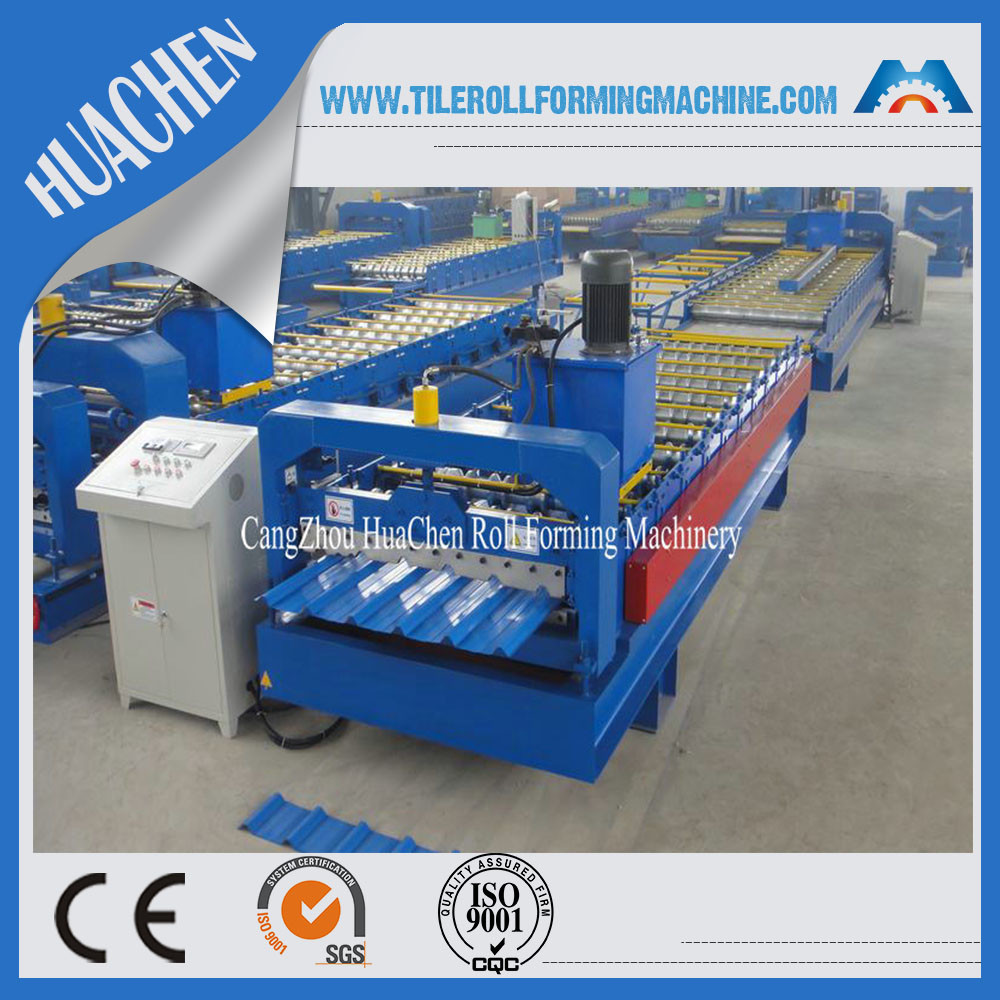

Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery

Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery
Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery
Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery

Hình ảnh lớn :  Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery

Thông tin chi tiết sản phẩm:
Nguồn gốc: China
Hàng hiệu: HC
Chứng nhận: ISO CE
Số mô hình: HC25
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: USD8000-15000
chi tiết đóng gói: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Thời gian giao hàng: 30 work days
Điều khoản thanh toán: D/A, Western Union, L/C, T/T
Khả năng cung cấp: 20 sets per month

Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery

Sự miêu tả
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: Steel Roofing Sheet Roll Forming Machine screen: touch screen
Điểm nổi bật:

roof tile roll forming machine

,

roof panel roll forming machine



Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery

Main parameters of hydraulic roofing sheet crimping machine:

1.The frame: steel welding
2.Material: GI Thickness:0.3-0.8mm
3.Material of forming mold: Cr 12 steel with quenched treated 60-62℃
4.Main oil pump press: 32mpa
5.Feeding equipment
1) Rack driving
2) DC motor: calculates arc length automatically
6. Hydraulic system
1) Advanced hydraulic system from Taiwan
2) Power: 5.5kw
7.Voltage:380v 50hz 3-phase



Features of hydraulic roofing sheet crimping machine:



1.Support random roofing sheet type. Normal crimping machine only can support one type.
2.Allow you to adjust the crimping depth and bending degree.
3.The width of crimping and length could be adjusted easily by PLC.
4.Could be used to any length of sheet. As the guardrail could be adjusted.
5.Support any type of roofing material like aluminum, steel, galvanized and others.
6.Support big thickness range from 0.2 to 1.2mm.
7.Fully automatically and long time to use.



Specification



Roof curving crimping machine Steel Crimping Machine Curved Roofing Sheet Machine hydraulic curving machine roof curving machine is also the nickname of the following name. This type roofing sheet crimping machine has two types: one is for motor type and the other is hydraulic type. The following type I will show you the hydraulic roofing sheet crimping machine.

Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery 0Hydraulic Roofing Sheet Roll Forming Machine , Sheet Metal Roll Former Machinery 1
