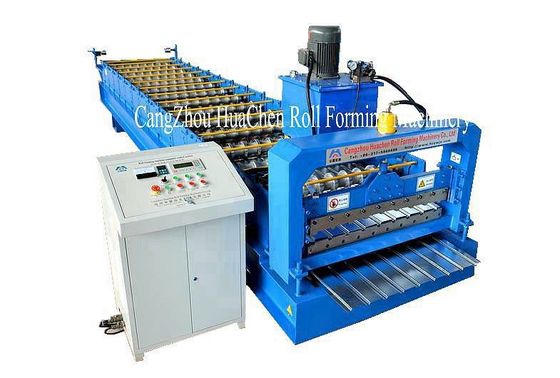

High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control
This wall panel roll forming machine consists of several parts, as listed below.
1. 5T decoiler
2. roll forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. run out table
Passive decoiling → guided material feeding → roll forming → cut-to-length → run out
The wall panel roll forming machine is designed to make favored wall panels that are used to build walls of many industrial and civilian constructions around the world, including workshop, warehouse, hangar, gymnasium, theatre, exhibition hall, engine house, etc.
|Applicable material||Color plate, galvanized sheet, galvalume plate and aluminum sheet||This machine is customizable upon each customer's requirements and the characteristics of processed material.|
|Processing thickness||0.4mm - 0.8mm|
|Roller material||45# steel coated with hard chrome|
|Main motor power / hydraulic station power||5.5kW / 3kW||These parameters can be set according to the required production capacity.|
1. The finished panel has small depth and large pitch. Thus, it is relatively easier to manufacture this machine, and the price is moderate.
2. The wall panel itself has reinforcing rib, and corrugation is not generated during production. Its mechanical strength makes it suitable for general use.
3. There is no need to redesign the wall panel roll forming machine, so the production cycle is reduced greatly. In addition, customized products are also available if relevant drawings and requirements are provided.
