Thông tin chi tiết sản phẩm:
|
| color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cut |
| working speed: | 8-10m/min | per month: | 30 sets |
| Điểm nổi bật: | metal roll forming machine,corrugated roll forming machine |
||

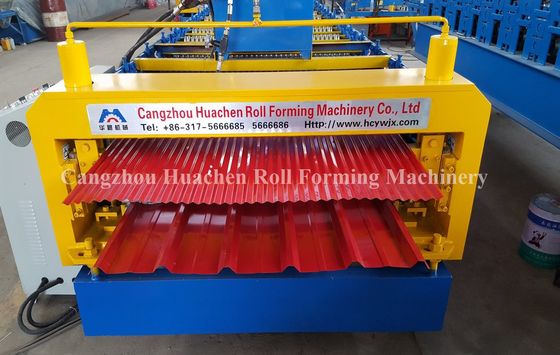

PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic
Machine’s Feature: One machine can make two kinds of profile. Client’s profile available.
Technical data of double layer roll forming machine
| Suitable material | Q235 color steel sheet;0.3-0.7mm, |
| Forming speed | about 20m/min |
| Power Requirement | Main motor power: 7.5 Kw(Depend on final design) |
| Hydraulic station power: 2.2Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on sureface. |
| Material of cutter | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft |
High quality 45# steel with heat treatment. Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 6500KGS |
| Machine’s size | about 7.5m×1.8m× 1.5m (Depend on final design) |
| Shipping | 1x40GP can load one machine |
Product application of double layer roll forming machine:
The product from this roll forming machine are widely used roof or wall of fabrication building, such as the roof of garden, factory, hotel, exhibition center and villa,etc.
Our Metal Double layer Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.
8. Long life: Ensure you our produce machine’s lifetime more than 15 years.
Certificate: ISO 9001, CE,
