8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz
8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz
8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz 8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

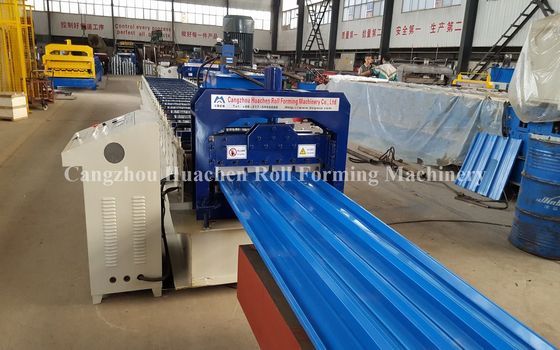

Hình ảnh lớn :  8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC38
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 9000-29000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

Sự miêu tả
type: Roofing Sheet Roll Forming Machine rollers: 24
roller material: No.45 steel warranty: 12 month
Điểm nổi bật:

roof tile roll forming machine

,

cold roll forming machine

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

This roof sheet roll forming machine consists of several parts, as listed below.


1. 5T decoiler
3. roll forming machine
6. Hydraulic shear
7. Hydraulic station
8. PLC control cabinet
9. run out table




Working process:

Passive decoiling → guided material feeding → rolling → cut-to-length → run out



Description:

Roof Panel Roll Forming Machine

The end product of this roof panel roll forming machine, namely roof panel, has found a lot of applications around the world. For example, it could be used to make the roofs for workshop, warehouse, hangar, gymnasium, theatre, exhibition hall, engine house as well as many other industrial and civilian buildings.


Common Features
1. The feeding widths are standard values including 1000mm, 1200mm and 1250mm. So, steel coils bought on the market could be processed by this machine directly, indicating that slitting is not necessary. In this way, the steel coil is fully utilized without any waste.

2. The finished roof panel is characterized by bright color, easy connection and convenient maintenance. The panel has reinforcing ribs, and corrugation is avoided during production. In addition, its mechanical strength meets the requirement of general use.

3. The rib height of the finished panel is not too high, so it is not very hard for us to manufacture this roll forming machine, and the machine is available at a reasonable price.

4. This product could be customized on the basis of customer's requirements and relevant drawings.

Roof panels made by this GWC25-205-820 roof panel roll forming machine are extremely popular on the market because of the high utilization rate, low depth (the height from the top of a crest to the bottom of a trough) and the cost-effective performance.



Applications:

  1. workshop
  2. warehouse
  3. hangar
  4. gymnasium
  5. theatre
  6. exhibition hall
  7. engine house
  8. industrial buiding
  9. civilian buiding



Specifications


Model HC38 Note
Applicable material Color plate, galvanized sheet, galvalume plate and aluminum sheet This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 1000mm/1200mm
Processing thickness 0.4-0.8mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 5.5kW / 3kW These parameters can be set according to the required production capacity.
Forming passes 24
Forming speed 5-15m/minute
Machine dimensions 9.5×1.3×1.2m
Machine weight 6.5T





Competitive Advantage:

Besides the common features, this product also possesses other outstanding properties.
1. Our roof panel roll forming machine can add one pitch and becomes GWC35-125-875 type. The feeding width is changed to 1200mm accordingly.

2. This machine could work with bending machine to manufacture girderless arch roof.
