Thông tin chi tiết sản phẩm:
|
| Công suất: | 8-10m / phút | cả đời: | 15 năm trên |
|---|---|---|---|
| Quyền lực: | 380V hoặc tùy chỉnh | ||
| Điểm nổi bật: | sheet metal roll forming machines,Highway Guardrail Roll Forming Machine |
||
Description:
This kind of machine adopts new station to increase the firmness; machine adopts gearbox transmission to ensure working more stable; products used in a variety of guardrail, highway guardrail, fence and other livestock farms.
Serice
Before-sales
After-service:
.
Specifications
| Item: | Specification: | Notes: | |
| 1.Information of raw material | Suitable material: | Galvanized coil | |
| Width: | 475 mm | ||
| Thickness: | 2.5-2.8mm | ||
| Yield strength: | Q235A | ||
| 2.Production specification | Detailed as the file | ||
| 3.Power requirement: | Main power: | 22kw two sets |
With inventor (normal standard) |
| Cutter power: |
15kw(pressure:25mpa) 3 pcs cutter |
||
| Speed of machine: | 10-15meters/min | ||
|
5.Hydraulic de-coiler: |
Loading: | 5tons | Main power:3kw |
| Inner diameter | 508mm | ||
| Type: | Automatic type | ||
|
6.Machine specification: |
Structure: | 400I beam |
Transform method : Chains transform |
| Roll stations: |
20 roll stations (with 7pcs rollers for leveling diameter:80mm) |
||
| Splint thickness: | 22mm | ||
| Diameter of shaft: | 110mm, | ||
| Material of shaft: | Forged 45# steel | ||
| Type of cutting: | Saw cutting | ||
| Material of roller: |
GCr15 with heat treatment: HRC58-62 |
||
| Sizes of machine: | 15.5*1.0*1.5meters | ||
| Material of punching mold: | Cr12,hydraulic pre-punching | ||
| Sizes of chain: | 2.0inch | ||
Processiong Flow
Loading—decoiler—leveling loading—punching—forming –cutting –output

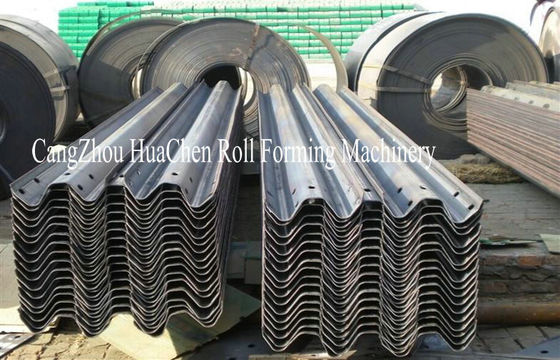

Applications:
The fianl products are High speed road guard rail,standard model (two waves and three waves are both
popular).Its usually used in Govenment project.
