Thông tin chi tiết sản phẩm:
|
| Usage: | roof cladding | Roller material: | 45# steel |
|---|---|---|---|
| Capacity: | 15m/min | Thickness: | 0.3-0.8mm |
| Material: | G550 | ||
| Điểm nổi bật: | roof tile roll forming machine,roof panel roll forming machine |
||

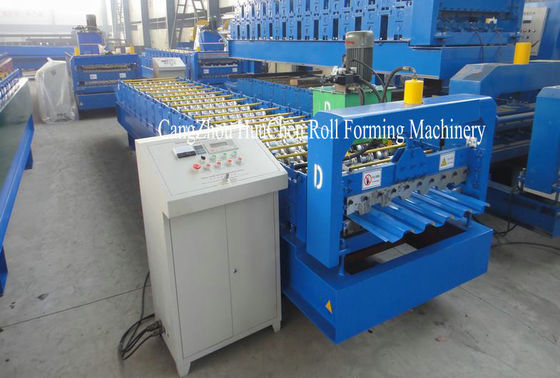

Mitsubishi PLC Corrugated Metal Roof Roll Forming Machine Yield Strength 550Mpa
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm

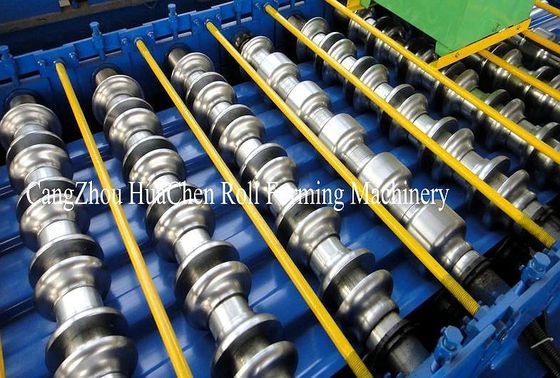

3. Rollers: 19 rows
4. Dimensions: 9.1*1.45*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Mitsubishi PLC Corrugated Metal Roof Roll Forming Machine Yield Strength 550Mpa Main parameter
|
No. |
Main parameter of Mitsubishi PLC Corrugated Metal Roof Roll Forming Machine Yield Strength 550Mpa |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
19 rows |
|
4 |
Dimensions |
9100*1450*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. CE certification
2 .ISO certification
3. working life 20 years
4. high quality steel
5. High efficiency
