Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate
Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate
Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

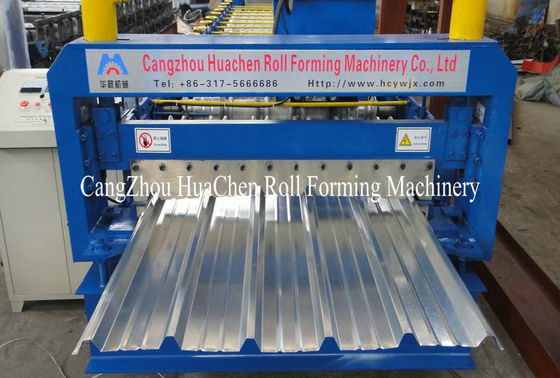

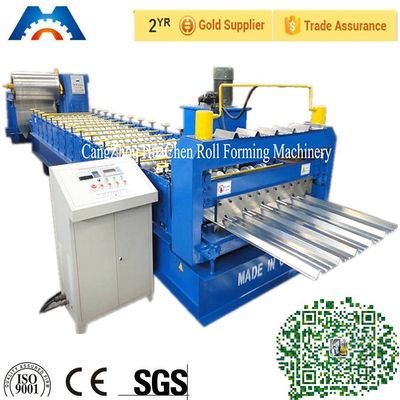

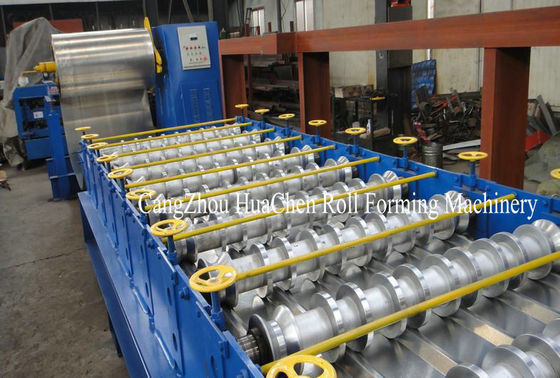

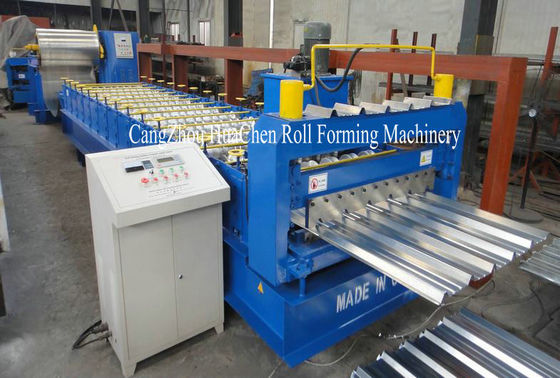

Hình ảnh lớn :  Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC30-200-1000
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

Sự miêu tả
raw material: aluminum sheet type: automatic
use: roof panel profile: customized
cutting methold: hydraulic cut roller stations: 14
thickness: 0.3-0.7mm
Điểm nổi bật:

cold roll forming machine

,

roof panel roll forming machine

Roof Sheet Roll Forming Machine





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1200mm

3. Rollers: 14 rows

4. Dimensions: 7.1*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

14 rows

4

Dimensions

7100*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate 0Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate 1





Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight
