Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station
Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station
Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

Hình ảnh lớn :  Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC26
Thanh toán:
Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station

Sự miêu tả
Điểm nổi bật:

roll forming equipment

,

cold roll forming machine

Double Press Glazed Step Tile Roll Forming Machine

1. Working Flow:

3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

double tile pressing roof machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Pressing Form - Cutting

2 Application

This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

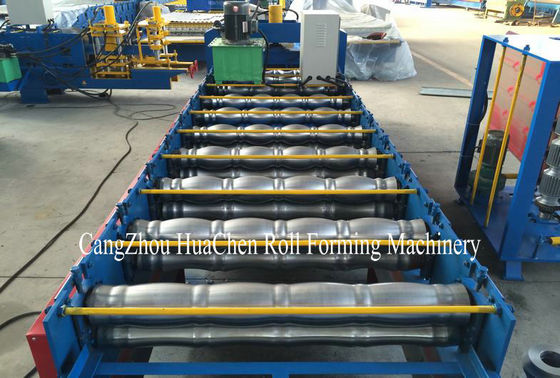

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station 1

3 Parameters: 3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

No.

   Main parameter of Glazed Tile Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

12 rows

4

Dimensions

7100*1450*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

0-2m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

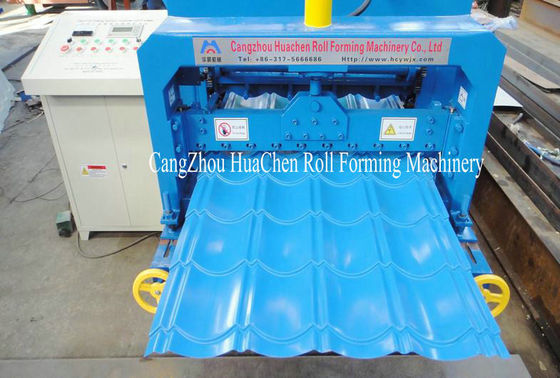

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station 2

Rolling Material: high grade 45# steel(plated chrome on surface)
Equipment Components: Man-Made Uncoiler-Roll Forming Machine-Computer Control System-
Hydraulic Control System-Press Form-Cutting

3 Phases Hydraulic Arc Sheet Metal Roll Forming Machines Color Steel Roll Form Equipment

Double Press Glazed Step Tile Roll Forming Machine With 16 Forming Station 3

We have a professional design team
Can also design and manufacture according to customer's requirement.

Competitive Advantage

1.elegant appearance

2.high quality steel structure

3.One year free guarantee

4.lifelong maintain

5.Panasonic PLC
