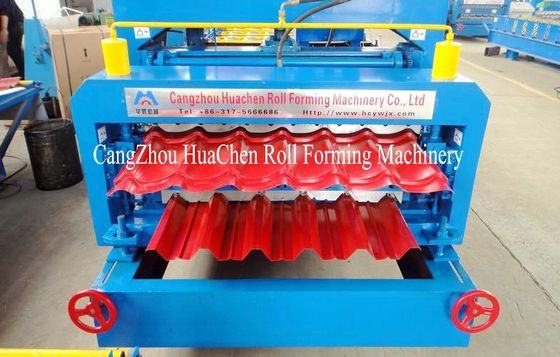

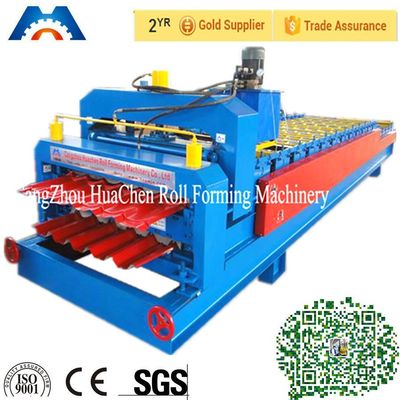

Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet

Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet
Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet

Hình ảnh lớn :  Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO/CE
Model Number: HC24/44
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet

Sự miêu tả
color: blue type: automatic
control system: PLC control cutting method: hydraulic cuting
per month: 30 sets
Điểm nổi bật:

sheet metal roll forming machines

,

corrugated roll forming machine

Double Roll Forming Machine For Glazed Tile And Roof Sheet


 Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet 0Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet 1


Quick Detail:


1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 12/17 rows
4. Dimensions: 9.5*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Description:


 Main parameter

No.

 Main parameter of Double Layer Roof Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :12 rows
Down level :17 rows

4

Dimensions

9700*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control



Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site
 Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet 2Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet 3
Competitive Advantage
 1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain

Roll Former Double Layer Roll Forming Machine For Glazed Tile Roof Sheet 4
