7.5KW 0.3 - 0.8mm Double Layer Roll Forming Machine 380V 50Hz 3 Phases

Thông tin cơ bản
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC35-27
Minimum Order Quantity: 1set
Giá bán: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Thông tin chi tiết
Điểm nổi bật:

sheet metal roll forming machines

,

corrugated roll forming machine


Mô tả sản phẩm

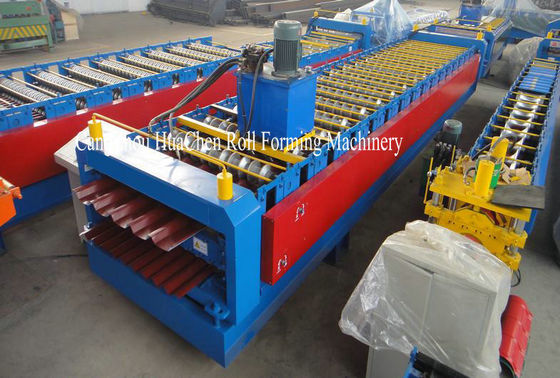

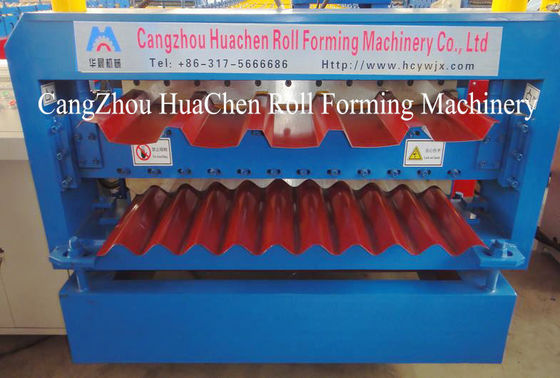

7.5KW, 0.3 - 0.8mm Double Layer Roof Panel Roll Forming Machine
7.5KW 0.3 - 0.8mm Double Layer Roll Forming Machine 380V 50Hz 3 Phases 07.5KW 0.3 - 0.8mm Double Layer Roll Forming Machine 380V 50Hz 3 Phases 1

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 16/17 rows
4. Dimensions: 9.7*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

7.5KW, 0.3 - 0.8mm Double Layer Roof Panel Roll Forming Machine Main parameter

No.

 Main parameter of Double layer roll forming machine


1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :16 rows
Down level :17 rows

4

Dimensions

9700*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

15-20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

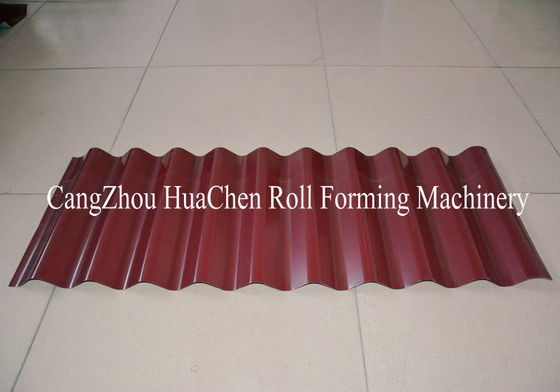

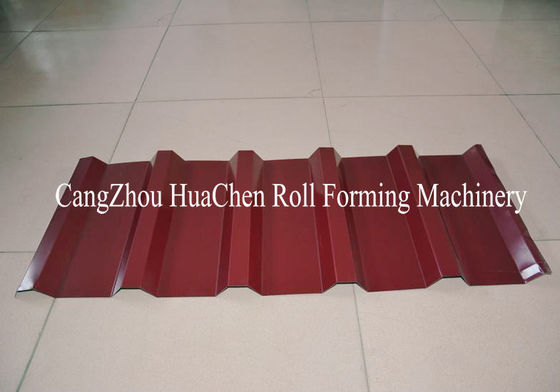

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site
 7.5KW 0.3 - 0.8mm Double Layer Roll Forming Machine 380V 50Hz 3 Phases 27.5KW 0.3 - 0.8mm Double Layer Roll Forming Machine 380V 50Hz 3 Phases 3

Competitive Advantage


1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
