PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting
PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting
PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

Hình ảnh lớn :  PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC38
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 8000-29000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting

Sự miêu tả
color: as your require type: automatic
control system: PLC control cutting method: hydraulic cuting
establish year: since1996 workers: 100
customers: over 90 countries certification: CE/ISO 9001
Điểm nổi bật:

cold roll forming machine

,

roof panel roll forming machine

PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting


Trapezoidal Roof Roll Forming Machine..

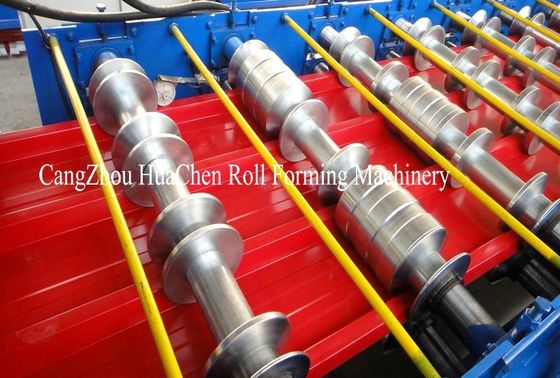

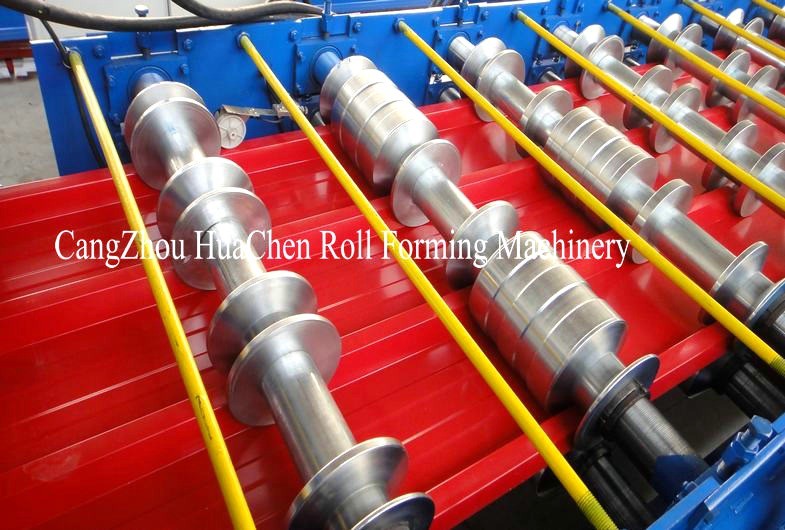

This machine Trapezoidal roof roll forming machine features high forming speed, rational design, simple operation and durability. Roof roll forming machine includes hydraulic decoiler with breaking device, roll former with tooling, hydraulic cut­off machine, run out table and automatic stacking device, and more.It suits for forming PPGI coil and embossed aluminum coil material.

Supply various roof/wall profiles
Accept customized design
Machine working life could be more than 10 years
Supply technical support for all life
The machine can work as fast as 40m/min with no stop cutting system

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate:1000mm
3. Rollers: 18 rows
4. Dimensions: 9.1*1.45*1.51m
5. Power: 7.5kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control

PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 0PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 1PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 2PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 3
Description:

Roof Panel Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

19 rows

4

Dimensions

9100*1450*1510mm

5

Power

5.5kw

6

Rolling material

45# steel(plated chrome on surface)


7

Thickness of the plate

0.3-0.6mm

8

Productivity

20m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

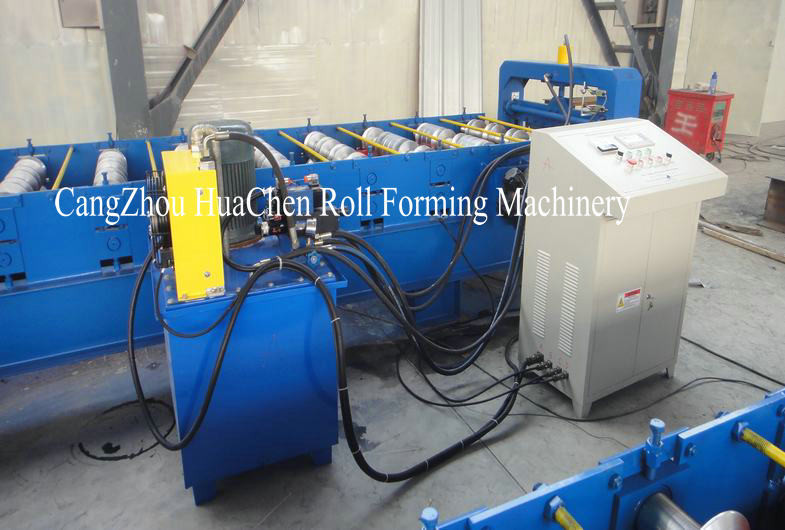

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 4


PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 5
Intruduction:

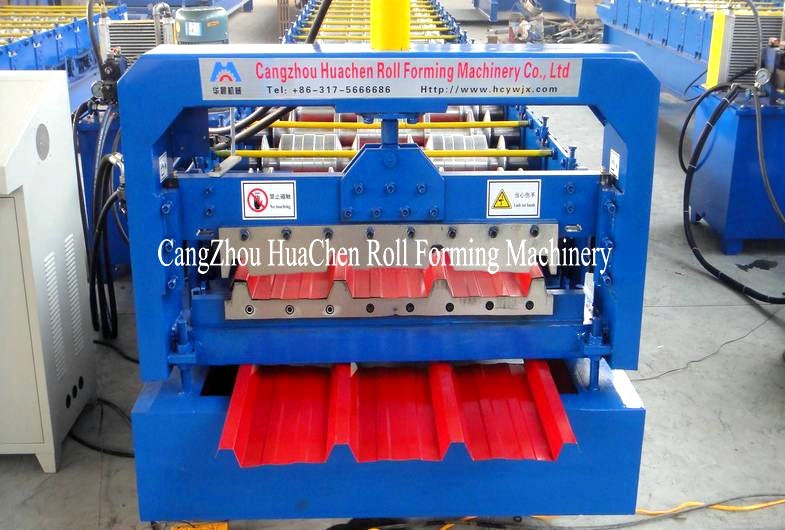

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site



Competitive Advantage

1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use

PBR / PBU Roofing Sheet Roll Forming Machine PLC Control Hydraulic Cutting 6

At present, 90% of our machine have been exported. Our roll forming machine have been exported to the USA,
Romania, Turkey, India, Malaysia, Russia, Kazakhstan, Congo, Algeria, Bolivia, Sri Lanka, Etc.
Our Pursuit of "First rate quality, Reasonable Prices and Comprehensive after sales service"
