Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Chứng nhận
chất lượng tốt Máy cán khuôn lợp giảm giá
chất lượng tốt Máy cán khuôn lợp giảm giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Trung Quốc Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller nhà cung cấp
Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller nhà cung cấp Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller nhà cung cấp Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller nhà cung cấp Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller nhà cung cấp

Hình ảnh lớn :  Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Thông tin chi tiết sản phẩm:

Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC24-183-1100

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: 12000-29000USD
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Chi tiết sản phẩm
Material: PPGI GI Thickness: 0.3-0.7mm
Usage: Roof Voltage: 380V or customized
Power: 4+4kw Capacity: 2-4m/min
Life time: 30 years

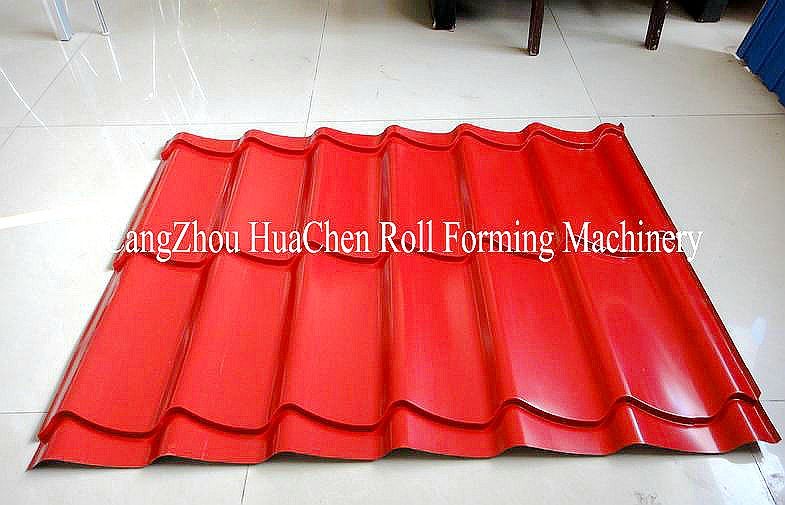

Steel Roofing Glazed Tile Roll Forming Machine Application

Our Metal Roofing Sheet Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


SPECIFICATIONS FOR Steel Roofing Glazed Tile Roll Forming Machine

Main Roll Forming Machine
Roller station 12 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 0.3-0.8mm

Others
Speed 20m/min
PLC system EURA or customized
Weight 4..5T

Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel RollerSimens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Steel Roofing Glazed Tile Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel RollerSimens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel RollerSimens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Metal Roofing Sheet Roll Forming Machine Parts

Detailed Images

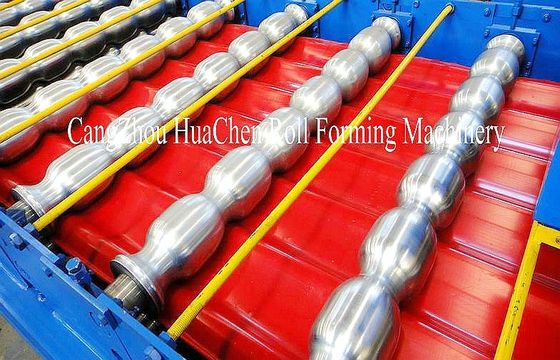

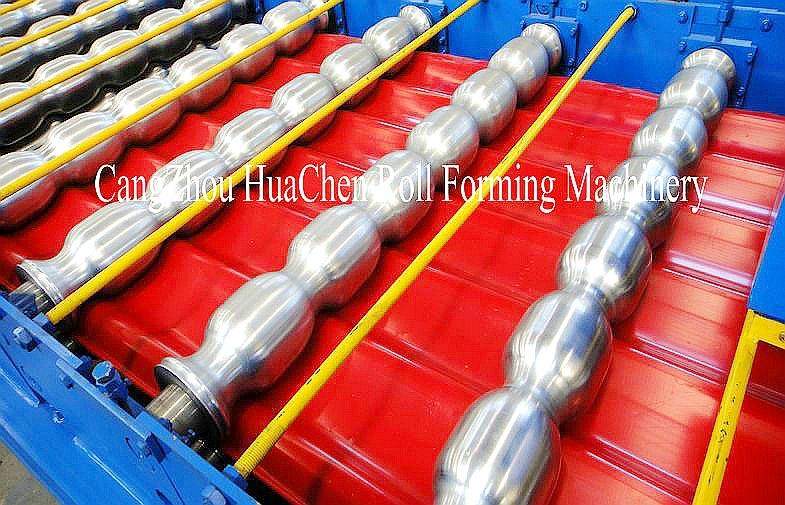

Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

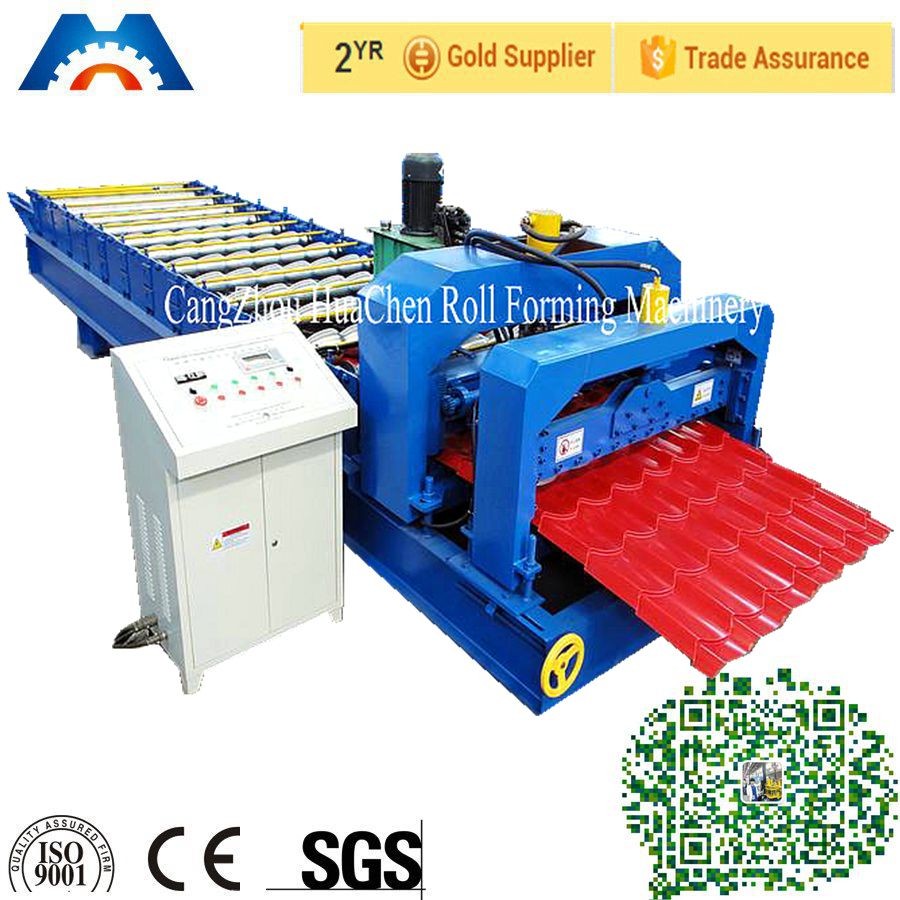

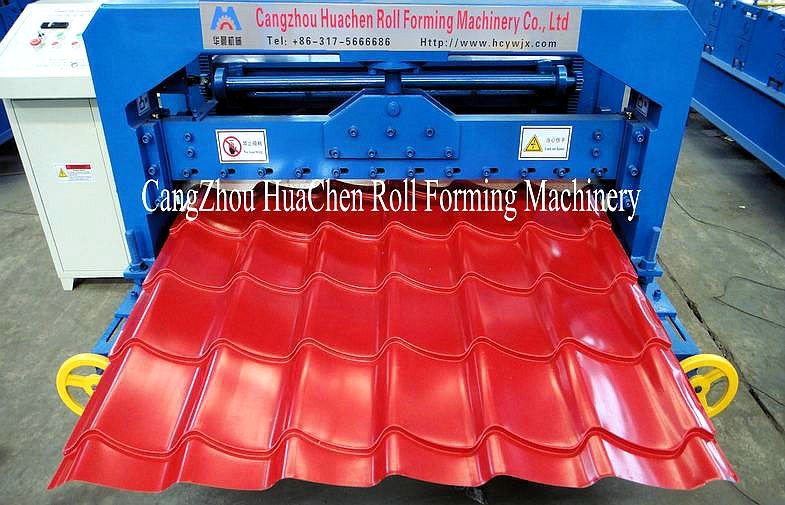

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller
Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller Size: 7200 (L) * 1450 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller Simens PLC control Roofing Glazed Tile Roll Forming Machine 45# Steel Roller
