Thông tin chi tiết sản phẩm:
|
| color: | blue and white | type: | automatic |
|---|---|---|---|

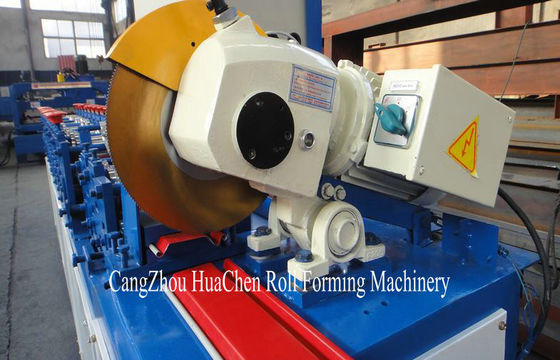

| control system: | inverter and PLC control | cutting method: | fly saw cut |
| power: | 3+3 kw | per month: | 35 sets |
| Điểm nổi bật: | steel roll forming machine,roll forming machinery |
||

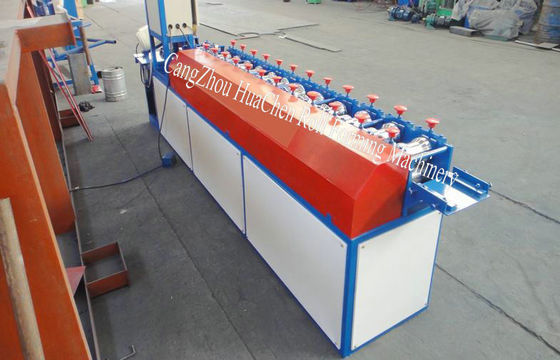

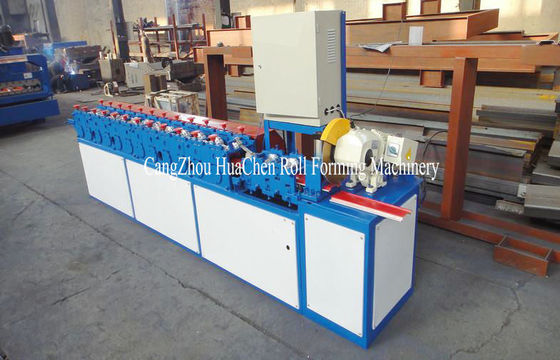

Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips
Quick Detail:Rolling Shutter Door Roll Forming Machine Making Roll-up Door Strips
1. Suitable to process: Color steel plate
2. Width of the plate: 165mm
3. Rollers: 12rows
4. Dimensions: 3.5*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:Rolling Shutter Door Roll Forming Machine Making Roll-up Door Strips
Main parameter
|
No. |
Main parameter of Rolling Shutter Door Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
165mm |
|
3 |

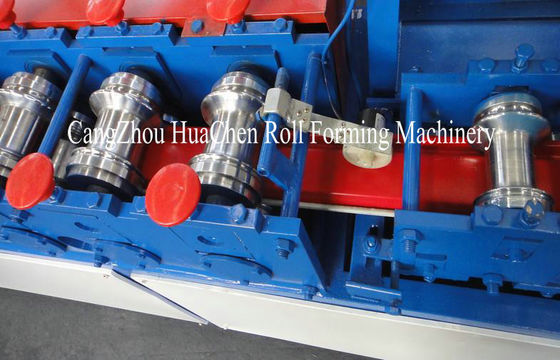

Rollers |
12 rows |
|
4 |
Dimensions |
3500*1150*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.6mm |
|
7 |
Productivity |
15m/min |
|
8 |
Diameter of the roller |
Φ36 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

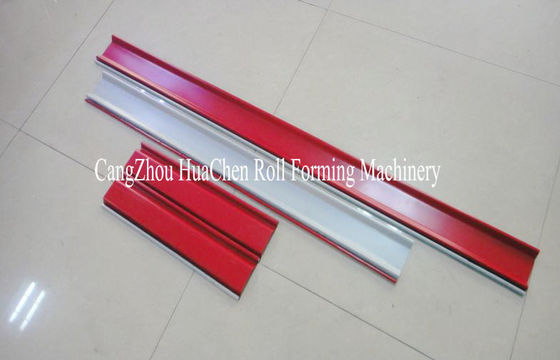

This type of sheet can be widely used as the door of garage, storage and supermarket.
Competitive Advantage
1. CE certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request
