High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers
High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

Hình ảnh lớn :  High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO/CE
Model Number: HC25-180-1100
Thanh toán:
Minimum Order Quantity: 1set
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

Sự miêu tả
màu sắc: màu xanh dương kiểu: tự động
hệ thống điều khiển: Điều khiển PLC phương pháp cắt: cắt thủy lực
mỗi tháng: 30 bộ công nhân: 100
Điểm nổi bật:

roll forming equipment

,

roof tile roll forming machine

High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers

What's your machine application ?
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

How about the parameters for Roll Forming Machine? If need some change, just tell me
1. Suitable to process: Color steel plate
2. Width of the plate: 1220mm
3. Rollers: 15 rows
4. Dimensions: 8.2*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control

Description:

No.

   Main parameter of Glazed Tile Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

Rollers

15 rows

4

Dimensions

8200*1550*1510m

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers 0
High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers 1

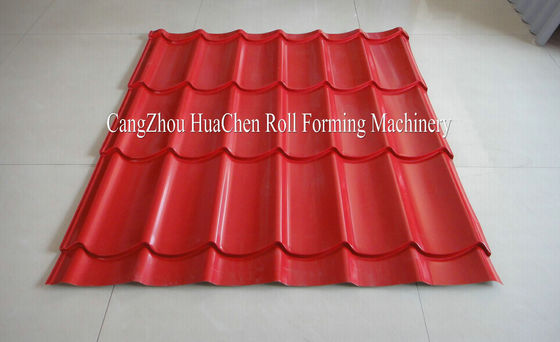

Application
This type of glazed tile has advantage inclouding beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers 2

Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use

High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers 3High Precision Villa Glaze Tile Roll Forming Machine 1220mm With 15 Row Rollers 4
