high quality Steel Rolling Shutter Door Roll Forming Machine for garage door

high quality Steel Rolling Shutter Door Roll Forming Machine for garage door
high quality Steel Rolling Shutter Door Roll Forming Machine for garage door high quality Steel Rolling Shutter Door Roll Forming Machine for garage door high quality Steel Rolling Shutter Door Roll Forming Machine for garage door high quality Steel Rolling Shutter Door Roll Forming Machine for garage door high quality Steel Rolling Shutter Door Roll Forming Machine for garage door

Hình ảnh lớn :  high quality Steel Rolling Shutter Door Roll Forming Machine for garage door

Thông tin chi tiết sản phẩm:
Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC830
Thanh toán:
Minimum Order Quantity: 1set
Giá bán: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

high quality Steel Rolling Shutter Door Roll Forming Machine for garage door

Sự miêu tả
material: painted steel thickness: 0.3-0.6mm
capacity: 8-10m/min roller: No.45 steel
Blade: Cr12 Warranty: 1 year
Điểm nổi bật:

steel roll forming machine

,

roll forming machinery



Shutter Door Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000mm

3. Rollers: 18rows

4. Dimensions: 8.6*1.45*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Product Description



The chart of process flow

roll shutter door roll forming machine/roller shutter/rolling slats

Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —

computer control system—hydraulic cutting—product to stand



Equipment technical parameters

Molding host Model SB-roll forming machine
Forming size 5000mm×800mm×1000mm
weight 3T
Host big frame structure Frame welded
Roll station 14rows
Axial material 45# steel
Out diameter of shaft Φ70mm
Roller materials 45# steel hard chromium plating
Drive By chain
Sprocket chain 1 inch
Main power: 4kw
Working speed 8-10 m/min
Material thickness 0.3-0.8mm
  Made board 16mm



Hydraulic shearing



Material of blade Cr12,heat treatment 60-62°C
Shearing system

It is controlled by gear wheel oil pump. After

filling the hydraulic oil into the hydraulic oil tank,

the pumps drive the cutter machine to begin the

cutting job.

The system includes a set of hydraulic tank, a

set of hydraulic oil pump, two hydraulic pipes.

And two sets of electromagnetism valves.

Power of the oil pump: 3kw

Hydraulic oil :40#



Electrical system



Main computer control cabinet

It adopts industrial computer to control. The target piece’s

length is adjustable and digit of it can be adjusted. Computer

mode has two modes: automatic and manual one. The system

is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer

for the electronic machines and kits of every part.

Transducer brand is EURA.

The seller will provide Chinese and English language screen.

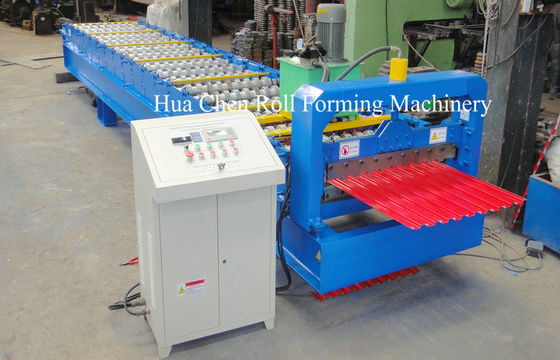

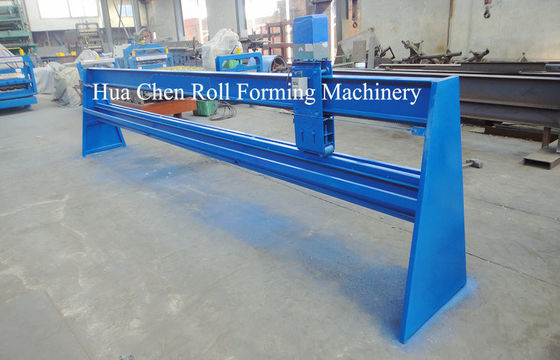

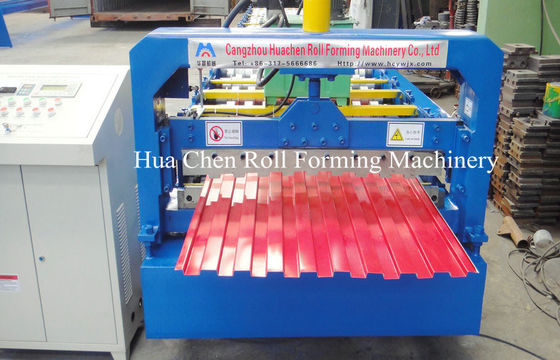

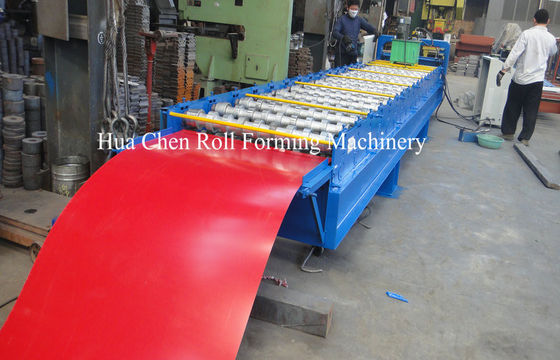

high quality Steel Rolling Shutter Door Roll Forming Machine for garage door 1high quality Steel Rolling Shutter Door Roll Forming Machine for garage door 2high quality Steel Rolling Shutter Door Roll Forming Machine for garage door 3high quality Steel Rolling Shutter Door Roll Forming Machine for garage door 4



Application

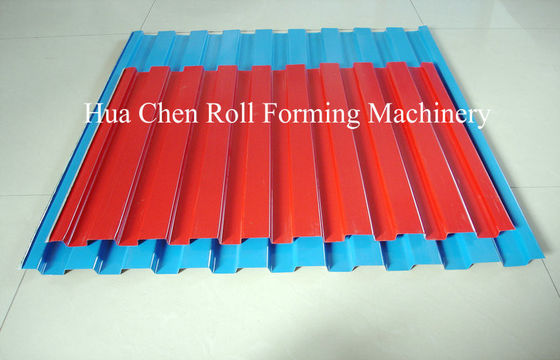

This type of sheet can be widely used as the door of garage, storage and supermarket.





1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
